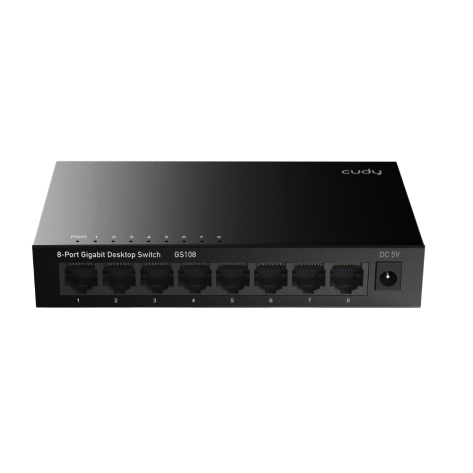

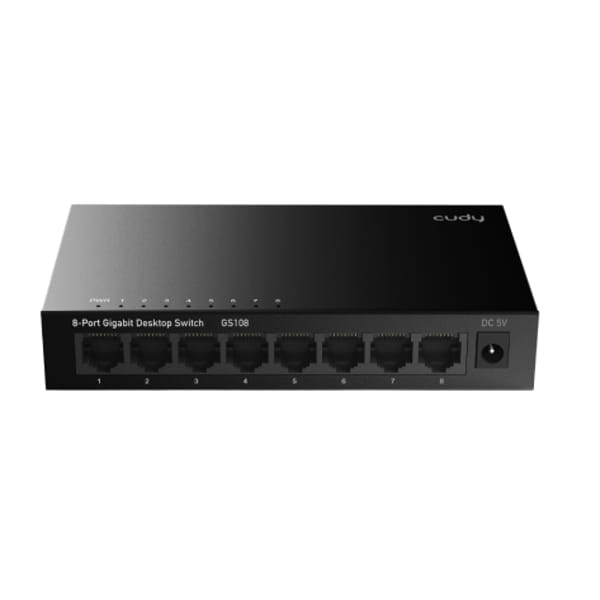

Cudy 8-Ports Unmanaged Desktop Switch

The Cudy GS108 8-Port Gigabit Desktop Switch is a high-performance networking solution designed to increase the speed of your network. With its non-blocking switching architecture, 8 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports, and IEEE 802.3x flow control, it offers a seamless and reliable networking experience for various environments. Key features include:

Complies with IEEE Standards: Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab standards.

8 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX Ports: Provide smart switching between 10Mbps, 100Mbps, and 1000Mbps hardware.

Non-Blocking Switching Architecture: Enables full wire-speed packet forwarding and filtering.

Store-and-Forward Switching Method: Supports 16K MAC address auto-learning and auto-aging.

Gigabit Ports for Faster Speed: Non-blocking, 8 10/100/1000Mbps ports enable instant transferring of large, bandwidth-intensive files without interference.

High Performance: Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.

Energy Efficient and Power Saving: Automatically adjusts power consumption according to the link status and cable length. This Gigabit Desktop Switch features innovative energy-efficient technologies that can greatly expand your network capacity with much less power.

Surveillance: Works with IP Cameras for home and office, small business.

VoIP Conference Call: Works with VoIP phones for business conferences.

Wi-Fi Coverage: Works with WiFi APs for office and business.

Specifications:

Switching Capacity 16Gbps, Throughput 11.9Mpps, Packet Buffer 2.5M, MAC Address 1K, Jumbo Frame 2K

Transfer Mode: Store and forward

MTBF: 100000 hour

Network protocol: IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control)

Network Medium: 10Base-T Cat3,4,5 or above UTP(≤100m), 100Base-TX : Cat5 or above UTP(≤100m), 1000Base-TX : Cat5 or above UTP(≤100m)

Working Environment: Working Temperature -10~50°C, Storage Temperature -40~70°C, Working Humidity 10%~90%，non-condensing, Storage Temperature 5%~90%，non-condensing, Working height Maximum 10,000 feet, Storage height Maximum 10,000 feet

Power Voltage: Power Input Voltage  AC 100-240 V, Switch Input Voltage DC 5V.

The Cudy GS108 8-Port Gigabit Desktop Switch is an ideal choice for increasing the speed of your network. Its non-blocking switching architecture, gigabit ports, and energy-efficient technologies make it a reliable and cost-effective networking solution for various environments.
