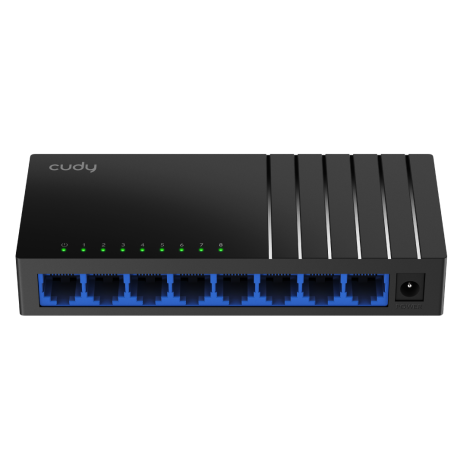

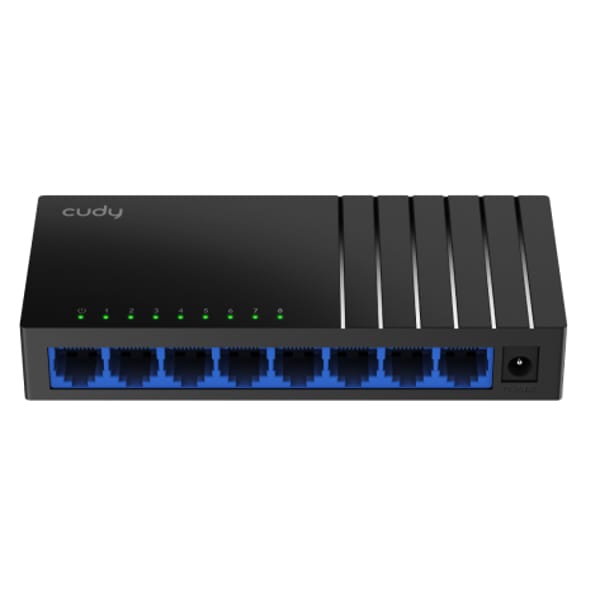

Cudy GS 108D 8-Port Unmanaged Desktop Switch

The Cudy GS108D 8-Port Gigabit Desktop Switch is a high-performance networking solution designed for small businesses and home networks. With its super-fast gigabit speed, extra transmission distance, and power-saving features, it offers a seamless and cost-effective networking experience for various environments.

Key features include:

8× 10/100/1000 Mbps Ports: Eight non-blocking Ethernet ports enable instant data transfer without mutual interference.

Auto-Negotiation: Automatically adjusts to the highest possible speed between connected devices.

Auto-MDI/MDIX: Automatically adjusts to the correct cable type for seamless connectivity.

Max 170 m Transmission Distance: 170 meters of Gigabit transmission, adding 70% longer distance compared to a standard switch, simplifies wiring for larger premises.

IEEE 802.3x Flow Control: Prevents packet loss and collisions with Full-duplex mode and backpressure for Half-duplex mode.

4 Mbit Packet Buffer: Ensures efficient data forwarding.

Power Saving Strategy: Reduces power consumption when Ethernet ports are idle, saving electricity expenses on networking facilities.

IGMP: High-efficiency multicast transmitting.

Loop Detection: Blocks loop automatically, improving reliability.

Desktop and Wall-Mounting: Provides two mounting holes on the bottom of the casing for wall-mounting placement scenarios.

Standards: Complies with IEEE 802.3i, 802.3u, 802.3ab, and 802.3x standards.

Network Media: Supports 10BASE-T, 100BASE-Tx, and 1000BASE-T Ethernet ports.

MAC Address Table: 8K entries.

Jumbo Frame: 15 KB.

Switching Capacity: 16 Gbps.

Max Forwarding Rate: 11.904 Mpps.

LED Indication: Power, Link/Act LEDs.

Transfer Method: Store-and-Forward.

Installation: Desktop, Wall-Mounting.

Casing: ABS Plastic.

Power Output: DC 5 V / 0.55 A.

Max Power Consumption: 2.75 W.

Max Heat Dissipation: 9.3775 BTU/h.

Environment: Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉), Storage Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~ 167 ℉), Operating Humidity: 0% ~ 100% non-condensing, Storage Humidity: 5% ~ 90% non-condensing.

Package Content: 1× Switch, 1× Power Adapter, 1× User Manual.

The Cudy GS108D 8-Port Gigabit Desktop Switch is an ideal choice for small businesses and home networks, offering super-fast gigabit speed, extra transmission distance, and power-saving features. Its versatile features and easy installation make it a convenient and cost-effective networking solution for various environments.
