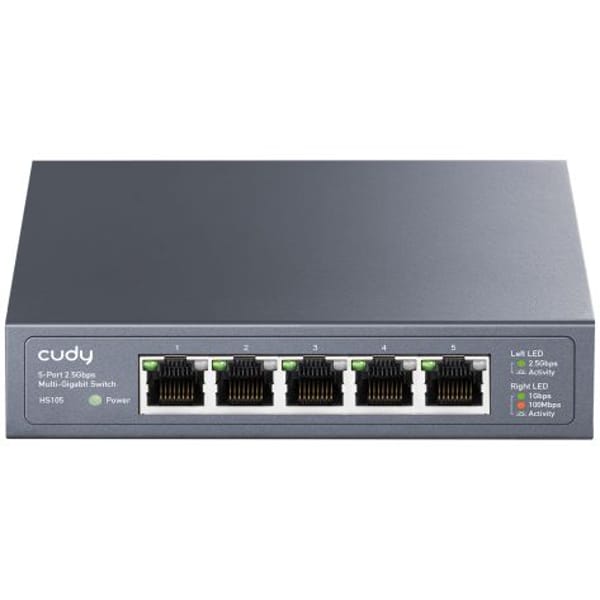

Cudy HS105 5-Port Unmanaged Desktop Switch

Cudy HS105 5-Port Unmanaged Desktop Switch

The HS105 5-Port 2.5G Desktop Switch offers high-speed connectivity with 5 auto-negotiation ports, and power-saving features. Ideal for efficient networking, it prevents packet loss, supports multi-cast transmission, and ensures reliability with loop detection. Easy to install on desktop or wall, it's a powerful solution for fast and stable connections.
SKU: HS105
Brand: Cudy
Warranty: 1 Year

Arriving Soon - Expected Dispatch in 3 to 6 Weeks

Product description

The Cudy HS105 switch is a high-performance 5-port 2.5G desktop switch that is designed to provide reliable and efficient network connectivity for small to medium-sized businesses. The switch comes with a standard configuration of 5× 100/1000/2500 Mbps RJ-45 Ethernet Ports, Auto-Negotiation, and Auto-MDI/MDIX. It has a switching capacity of 25 Gbps and a throughput of 18.6 Mpps, making it ideal for high-bandwidth applications such as video streaming, online gaming, and large file transfers. The switch also features IEEE 802.3x flow control and 4 Mbit packet buffer to prevent packet loss, ensuring that your data is transmitted smoothly and efficiently. The Jumbo Frame size is 15 KB, and the transfer mode is Store and forward. The MAC address table can store up to 8K addresses, providing ample space for your network devices. The MTBF is 100000 hours, ensuring that the switch is reliable and durable.

The switch supports IEEE802.3u (100Base-TX), IEEE802.3ab (1000Base-T), IEEE802.3bz (2.5GBase-T), and IEEE802.3x (Flow control) network protocols, making it compatible with a wide range of network devices. The switch can operate in the following network media: 100Base-TX : Cat5 or higher (≤100m), 1000Base-TX : Cat5 or higher (≤100m), and 2.5GBASE-T: Cat 5e (≤50m), Cat 6 or higher (≤100m). The switch can be installed on a desktop or wall-mounted, providing flexibility in terms of placement. The working temperature range is -0~40°C, and the storage temperature range is -40~70°C. The working humidity range is 0%~100%, non-condensing, and the storage humidity range is 5%~90%, non-condensing. The switch comes with a power adapter, quick installation guide, and mounting kit, making it easy to set up and use. The maximum power consumption is 10.5W, and the idle power consumption is 4.7W. The switch has ESD protection of ±4KV contact discharge and ±8KV air discharge, ensuring that your network devices are protected from electrostatic discharge.



Number of Ports
Ports and Slots
5× RJ-45 Ethernet Ports
Product Dimensions
11.9 × 85 × 28 cm
1 Year
