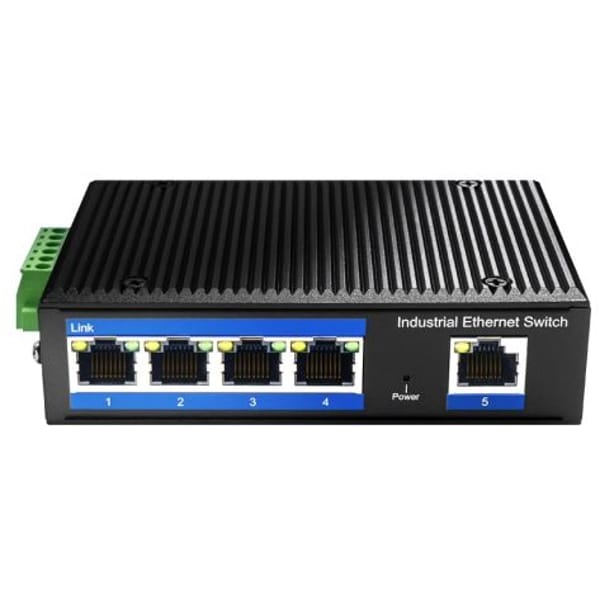

Cudy IF1005P 4-Port Industrial PoE+ Switch

Cudy IF1005P 4-Port Industrial PoE+ Switch

The IF1005P is a 4-Port 10/100M Industrial PoE+ Switch with a 120W power budget. It supports IEEE802.3at/af standards, delivering up to 30W per port. Its rugged design, wide temperature operation, and dual power supply make it ideal for demanding industrial environments. Its 120W power budget, wide temperature operation, and dual power supply enhance reliability
SKU: IF1005P
Brand: Cudy
Warranty: 1 Year
UPC/EAN: 6971690792190

Arriving Soon - Expected Dispatch in 3 to 6 Weeks

Product description

Experience enhanced network capabilities with the IF1005P, a cutting-edge 4-Port 10/100M Industrial PoE+ Switch designed to deliver efficient and reliable power-over-Ethernet (PoE) connectivity in industrial settings. With its advanced features and robust design, the IF1005P ensures seamless operation even in challenging environments.

The IF1005P is equipped with four PoE ports supporting the IEEE802.3at/af standards, delivering a maximum of 30W power per port. The total PoE budget of 120W enables the switch to efficiently power connected devices such as IP cameras, VoIP phones, and wireless access points. The auto-sensing technology complies with IEEE 802.3af/at standards, automatically detecting and delivering the appropriate power to connected devices, ensuring compatibility with various PoE-enabled devices.

Designed for durability and reliability, the IF1005P features a rugged IP40 Aluminum housing, providing protection against environmental factors. Its wide operating temperature range from -40ºC to 85ºC makes it suitable for deployment in extreme conditions. The switch is also equipped with 6KV DC Ethernet ESD protection and 6KV DC EFT protection for power lines, safeguarding against electrostatic discharge and electrical fast transients.

The IF1005P adopts a plug-and-play approach, ensuring easy setup and operation. Its fanless design not only contributes to silent operation but also enhances the switch's reliability by eliminating potential points of failure associated with fan-based cooling systems. The high-quality metal case provides durability, ensuring a long service life for the switch.

Dual power supply support adds an extra layer of reliability to the IF1005P. Each power supply has the capacity to independently operate the switch, ensuring continuous functionality even if one power supply fails. It's important to note that this product does not include a power adapter, allowing users to choose a suitable power source.

In addition to its technical prowess, the IF1005P prioritizes network protection with IP40 housing for industrial EMC design. This enhances the reliability of communication networks by providing robust protection against environmental challenges.

Upgrade your industrial network infrastructure with the IF1005P, a feature-rich and reliable PoE switch that combines power, durability, and ease of use.



0.5 kgs
Number of Ports
Ports and Slots
4- RJ45 Port; 1 Uplink Port
Product Dimensions
12 x 9 x 4 cm
1 Year
