Cudy Unmanaged Desktop Switch

Cudy Unmanaged Desktop Switch

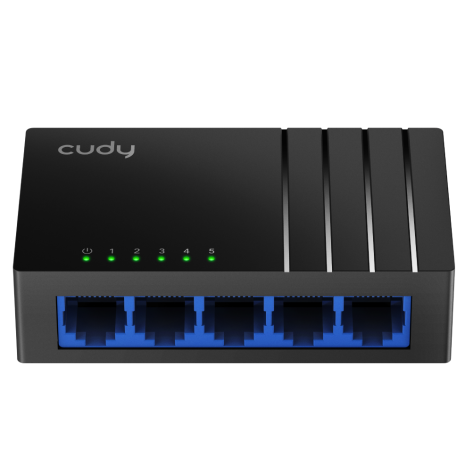

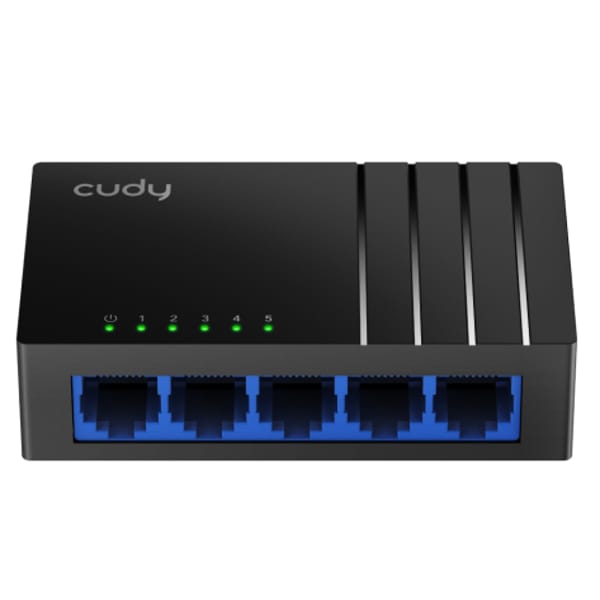

The Cudy GS105D 5-Port Gigabit Desktop Switch is a reliable and energy-efficient networking solution designed for small businesses and home networks. With its high-speed performance, seamless connectivity, and easy installation, it offers a smooth and cost-effective networking experience for various environments.
SKU: GS105D
Brand: Cudy
Warranty: 1 Year
UPC/EAN: 6971690790097

Product description

The Cudy GS105D 5-Port Gigabit Desktop Switch is a versatile networking solution designed for small businesses and home networks. With its high-speed performance and energy efficiency, it offers a seamless networking experience for various environments.

Key features include.

5× 10/100/1000 Mbps Ports: Five non-blocking Ethernet ports enable instant data transfer without mutual interference.

Auto-Negotiation: Automatically adjusts to the highest possible speed between connected devices.

Auto-MDI/MDIX: Automatically adjusts to the correct cable type for seamless connectivity.

Max 140 m Transmission Distance: 140 meters of Gigabit transmission, adding 40% longer distance compared to a standard switch, simplifies wiring for larger premises.

IEEE 802.3x Flow Control: Prevents packet loss and collisions with Full-duplex mode and backpressure for Half-duplex mode.

3 Mbit Packet Buffer: Ensures efficient data forwarding.

Power Saving Strategy: Reduces power consumption when Ethernet ports are idle, saving electricity expenses on networking facilities.

Desktop and Wall-Mounting: Provides two mounting holes on the bottom of the casing for wall-mounting placement scenarios.

Standards: Complies with IEEE 802.3i, 802.3u, 802.3ab, and 802.3x standards.

Network Media: Supports 10BASE-T, 100BASE-Tx, and 1000BASE-T Ethernet ports.

MAC Address Table: 2K entries.

Jumbo Frame: 15 KB.

Switching Capacity: 10 Gbps.

Max Forwarding Rate: 7.44 Mpps.

LED Indication: Power, Link/Act LEDs.

Transfer Method: Store-and-Forward.

Installation: Desktop, Wall-Mounting.

Casing: ABS Plastic.

Power Saving: Saves power when ports are idle.

Power Output: DC 5 V / 0.55 A (Adapter).

Max Power Consumption: 2 W.

Max Heat Dissipation: 6.82 BTU/h.

Environment: Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉), Storage Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~ 167 ℉), Operating Humidity: 0% ~ 100% non-condensing, Storage Humidity: 5% ~ 90% non-condensing.

Package Content: 1× Switch, 1× Power Adapter, 1× User Manual.

Specification

General

Number of Ports
5
Ports and Slots
5× 10/100/1000 Mbps Ports
Product Dimensions
88×52.5×24 mm
Warranty
1 Year
UPC/EAN
6971690790097
