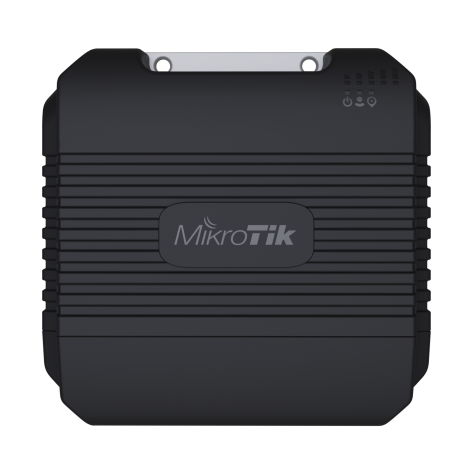

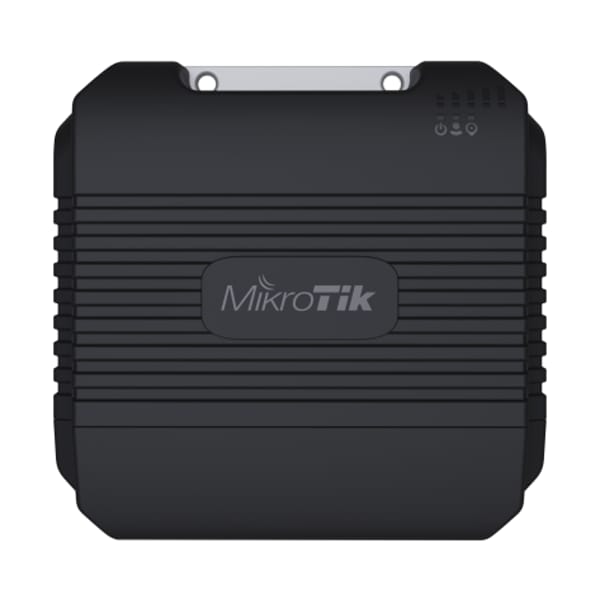

MikroTik LtAP LTE6 kit

MikroTik LtAP LTE6 kit

The LtAP-2HnD&FG621-EA wireless router, powered by a dual-core MT7621AT CPU, offers high-performance connectivity. With 3G and LTE support, flexible power options, and advanced features like IPsec hardware acceleration, it's ideal for robust and secure network applications.
SKU: LtAP-2HnD&FG621-EA
Brand: MikroTik
Warranty: 1 Year

Product description

The MikroTik LtAP-2HnD&FG621-EA is a versatile and robust wireless router designed for demanding network applications. Built on the MMIPS architecture with a powerful MT7621AT dual-core CPU running at a nominal frequency of 880 MHz and featuring four CPU threads, this router delivers high-performance capabilities. With 128 MB of RAM and 16 MB of FLASH storage, it ensures efficient operation and reliable storage for your network configurations.

Operating on RouterOS v7, the LtAP-2HnD&FG621-EA offers a RouterOS license for up to 4 devices. The router incorporates IPsec hardware acceleration, enhancing the security of your network communications. With a tested ambient temperature range from -40ยฐC to 70ยฐC and a Mean Time Between Failures (MTBF) of approximately 200,000 hours at 25ยฐC, it is well-suited for deployment in challenging environmental conditions.

Powering options are flexible, with three DC inputs (DC jack, PoE-IN, Automotive) supporting input voltages ranging from 12 to 30 V. The router has a maximum power consumption of 24 W, with passive cooling ensuring reliability without the need for active cooling mechanisms.

In terms of connectivity, the LtAP-2HnD&FG621-EA supports 3G and LTE mobile networks. It features 3G Category R8 with bands 1, 3, 5, and 8, and LTE Category 6 with both FDD and TDD bands, ensuring broad compatibility and high-speed data transfer capabilities. The router supports 2x2 MIMO for LTE DL and 1x1 MIMO for LTE UL.


Wireless connectivity is provided through a 2.4 GHz Wi-Fi 4 radio with a maximum data rate of 300 Mbit/s. The router features two chains, adheres to 802.11b/g/n standards, and employs the AR9342 chip model for efficient wireless communication. The presence of a 10/100/1000 Ethernet port further extends its connectivity options.

The LtAP-2HnD&FG621-EA is equipped with additional features such as three SIM slots for modems, two MiniPCI-e slots, a RS232 serial console port, and a USB port with power reset functionality. The inclusion of a temperature monitor and voltage monitor enhances overall system management. It meets various certifications and approvals, including CE, E-MARK, EAC, and ROHS, and boasts an IP54 rating for protection against dust and water.

With its robust hardware, versatile connectivity options, and advanced features, the LtAP-2HnD&FG621-EA is a reliable choice for diverse networking applications.

Specification

General

Weight
1.07 kgs
Package Dimension
29 x 19 x 5 cm
Warranty
1 Year
