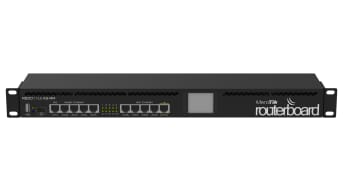

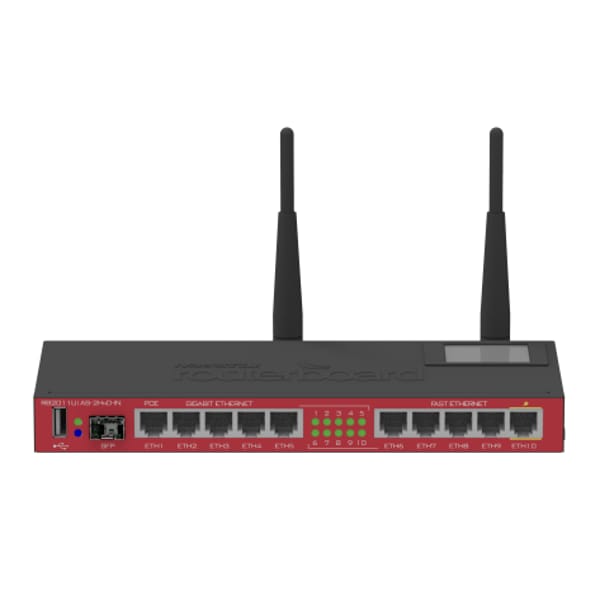

MikroTik RB2011UiAS-2HnD-IN Router

Introducing the RB2011UiAS-2HnD-IN, a versatile router with advanced features for seamless network management. Powered by a single-core AR9344 CPU running at 600 MHz and featuring MIPSBE architecture, it offers reliable performance for various applications.

Equipped with RouterOS license 5, this router ensures a customizable and efficient operating system. With 128 MB of RAM and 128 MB of NAND storage, it provides ample memory and storage capacity for smooth multitasking and data access.

The RB2011UiAS-2HnD-IN incorporates a switch chip model AR8327, providing enhanced connectivity options. In terms of wireless capabilities, it operates at 2.4 GHz with a maximum data rate of 300 Mbit/s, two chains, and supports 802.11b/g/n standards. The antenna gain for the 2.4 GHz band is 4 dBi, utilizing the AR9344 chip model for Wi-Fi 4 generation.

Featuring a balanced Ethernet configuration, it offers 5 ports each for 10/100 and 10/100/1000 Ethernet connections. Additionally, there is one SFP port with DDMI support for fiber connectivity.

The RB2011UiAS-2HnD-IN is designed with user convenience in mind, featuring a serial console port (RJ45), one USB port with Power Reset functionality, and a USB type A slot. The router can be powered through two DC inputs, either via DC jack or PoE-IN, with a voltage range of 8-30 V. The maximum power consumption is a modest 11 W, and passive cooling ensures efficient heat dissipation.

With Passive PoE functionality, the RB2011UiAS-2HnD-IN supports both PoE-in and PoE-out. The PoE-out ports, Ether10, deliver up to 510 mA per port with a maximum total output of 510 mA. This feature adds flexibility for powering external devices.

Certified with CE, FCC, IC, EAC, and ROHS, the router adheres to international standards and holds an IP20 rating for protection against dust and solid objects. Monitoring features include PCB temperature and voltage monitors, along with a beeper for alerts.

In the wireless domain, the router provides detailed specifications for 2.4 GHz transmission power and receive sensitivity across various data rates, ensuring optimal performance in wireless networking scenarios.

In summary, the RB2011UiAS-2HnD-IN combines reliable hardware, versatile connectivity options, and user-friendly features, making it an ideal choice for a range of networking applications.
