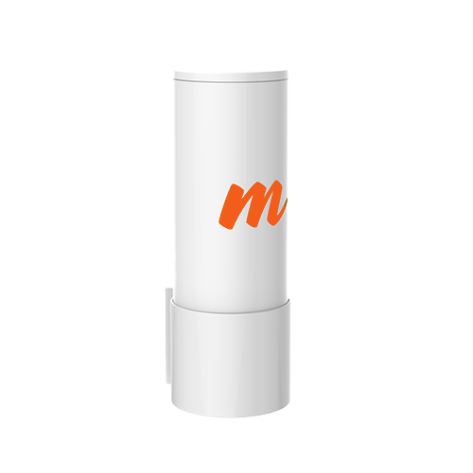

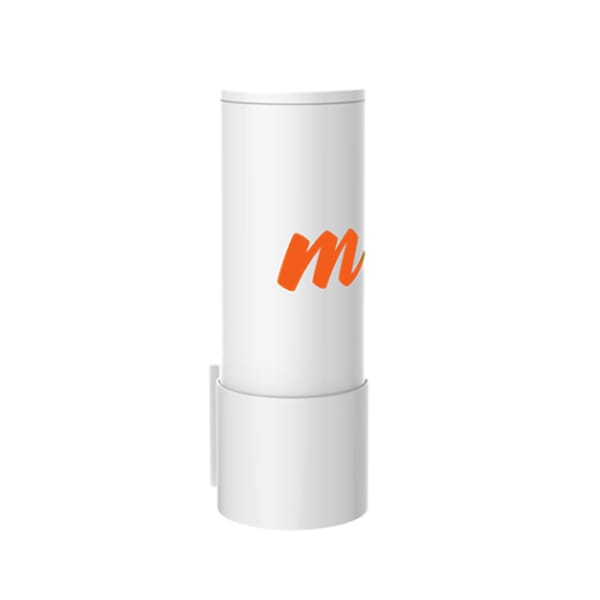

Mimosa Access Point (A5-14)

The Mimosa A5-14 Access Point is a compact and highly efficient point-to-multipoint (PTMP) wireless solution designed to deliver reliable, high-speed broadband service in suburban and rural environments. With its integrated 14 dBi sector antenna and support for MU-MIMO and GPS synchronization, the A5-14 is purpose-built for quick deployment and scalable connectivity, providing internet service providers with an intelligent, fiber-fast alternative to traditional wired infrastructure. This access point is ideally suited for operators seeking rapid rollout and coverage over small- to medium-sized service areas, such as residential communities, small towns, and business parks.

Operating in the unlicensed 5 GHz frequency band, the A5-14 leverages advanced 802.11ac Wave 2 technologies including 4x4:4 MU-MIMO (multi-user multiple input, multiple output), beamforming, and spatial multiplexing. These capabilities enable the device to transmit to multiple users simultaneously, dramatically increasing spectral efficiency and overall capacity. The result is fast, low-latency wireless internet service capable of supporting hundreds of subscribers without compromising quality or reliability.

One of the A5-14’s standout features is its integrated 14 dBi panel antenna, which provides a balanced blend of gain and coverage. This antenna, combined with the unit’s beamforming capabilities, ensures extended reach and concentrated signal strength across a defined sector. For optimal performance in dense deployments, the device also includes built-in GPS for synchronization with other access points. This allows for frequency reuse and reduces self-interference, enabling more efficient use of available spectrum and higher overall network capacity.

Engineered with durability in mind, the A5-14 is enclosed in a compact, IP67-rated housing that resists dust, water, and environmental stresses. It is designed to operate in harsh outdoor conditions, withstanding temperatures ranging from –40°C to +55°C. This robust construction ensures long-term reliability and minimal maintenance in both mild and extreme weather conditions. The lightweight design and included mounting hardware also simplify installation, allowing for deployment on poles, rooftops, or walls with minimal effort.

Connectivity is facilitated by a single Gigabit Ethernet port that supports Power over Ethernet (PoE), streamlining power and data transmission through one cable. With low power consumption and simple setup, the A5-14 can be rapidly integrated into new or existing networks with minimal investment.

For remote management and monitoring, the A5-14 is fully supported by Mimosa’s cloud and on-premise Element management platforms. These tools offer real-time analytics, firmware management, and network configuration options, making it easy for service providers to optimize performance and monitor deployments at scale.

In summary, the Mimosa A5-14 Access Point is an excellent choice for ISPs seeking a compact, high-performance, and easy-to-deploy solution for delivering wireless broadband over wide coverage areas with minimal infrastructure.
