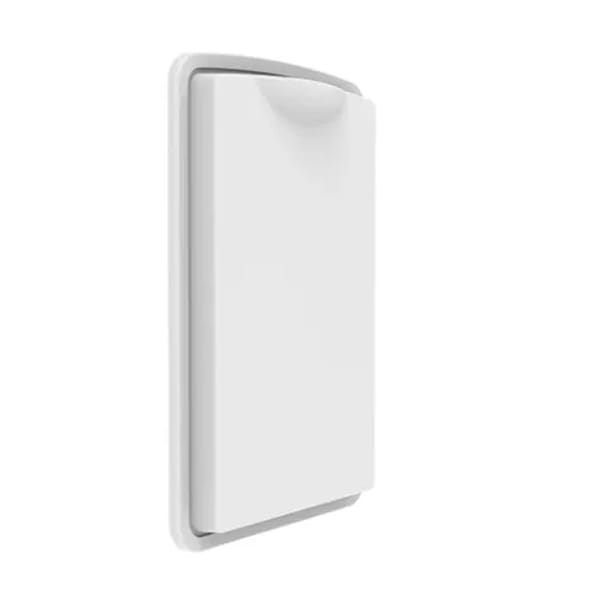

Mimosa Access Point (A6)

The Mimosa A6 Access Point is a cutting‑edge outdoor point-to-multipoint (PTMP) wireless radio designed to deliver fiber‑fast broadband speeds over the unlicensed 5.15–6.425 GHz band. Equipped with Wi‑Fi 6E technology, the A6 combines 8‑stream MU‑MIMO, 1024‑QAM modulation, and expansive 160 MHz channel support to deliver aggregate throughput of up to 6–7 Gbps. This high-capacity performance empowers service providers to serve hundreds of subscribers from a single access point, offering a scalable and cost-effective alternative to fiber deployments in both dense urban and expansive rural settings.

What sets the A6 apart is its ability to operate in the quieter 6 GHz spectrum, minimizing interference and unlocking cleaner channels for ultra‑high‑speed connectivity. The device harnesses advanced beamforming and baseband noise‑mitigation technologies to maintain stable links even under adverse conditions, while GPS synchronization enables synchronized co‑channel operation across multiple units, further boosting network capacity without causing inter‑device interference.

Designed for outdoor resilience, the A6 boasts a rugged IP67‑rated enclosure constructed from UV‑stabilized polymer and stainless‑steel mounting brackets, allowing it to withstand severe environmental conditions from –40 °C to +55 °C, wind speeds up to 200 km/h, and heavy loading. The built‑in 24 dBi panel antenna offers linear dual‑polarization with adaptive beamforming, delivering both focused coverage and long‑range reach with excellent front-to-back and cross‑polar isolation.

In terms of network integration, the A6 includes a gigabit copper PoE port and two 10 GbE SFP+ fiber uplinks, simplifying backhaul connections without the need for additional switches. With power options supporting outdoor PoE or DC input and maximum power draw of 40 W, deployment flexibility is maximized. The solution is made even more reliable with integrated lightning and electrostatic discharge protection rated to 6 kV.

For management, the A6 is fully supported by Mimosa’s cloud and Element management platforms. These tools offer remote provisioning, real-time monitoring, spectrum scanning, and firmware updates through intuitive dashboards, making large‑scale deployments simpler and more cost‑effective. The device’s scalability, combined with centralized management, ensures consistent performance across dispersed network sites.

In summary, the Mimosa A6 Access Point represents a powerful and future‑proof solution for broadband providers. Its high throughput, noise‑resilient performance, rugged construction, and intelligent manageability make it ideal for modern wireless broadband networks that demand both speed and durability. Whether addressing capacity-hungry urban deployments or reaching remote subscriber clusters, the A6 delivers fiber‑like performance without trenching fiber.
