Mimosa Backhaul Radio (B11)

The Mimosa B11 is a carrier-grade point-to-point backhaul radio engineered to deliver high-speed, low-latency wireless connectivity over licensed 11 GHz spectrum. Designed for telecommunications providers, internet service operators, and enterprises requiring fiber-like performance without the cost or delays of fiber deployment, the B11 offers up to 1.5 Gbps of throughput and ultra-reliable performance, making it ideal for mission-critical backhaul links, data center interconnections, and video transport applications.

Leveraging modern 802.11ac Wave 2 technology, the B11 features 2x2:2 MIMO and supports modulations up to 256-QAM, enabling superior spectral efficiency and capacity. With support for channel bandwidths from 20 to 80 MHz, users can dynamically allocate spectrum to match specific performance or licensing requirements. Operating exclusively in the licensed 10.7–11.7 GHz band, the B11 avoids interference common in congested unlicensed frequencies, providing a stable and secure platform for data transmission across metropolitan, suburban, or remote rural environments.

The B11 is designed to simplify every aspect of deployment and operation. Integrated GPS synchronization enables co-location of multiple radios on the same tower or facility without self-interference, maximizing spectrum reuse and increasing overall network scalability. Real-time spectrum analysis and automatic channel configuration tools further enhance ease of use, helping operators identify optimal link parameters and achieve peak performance in minimal time. Additionally, the radio offers link distance and performance forecasting, giving installers detailed projections based on environmental and antenna parameters.

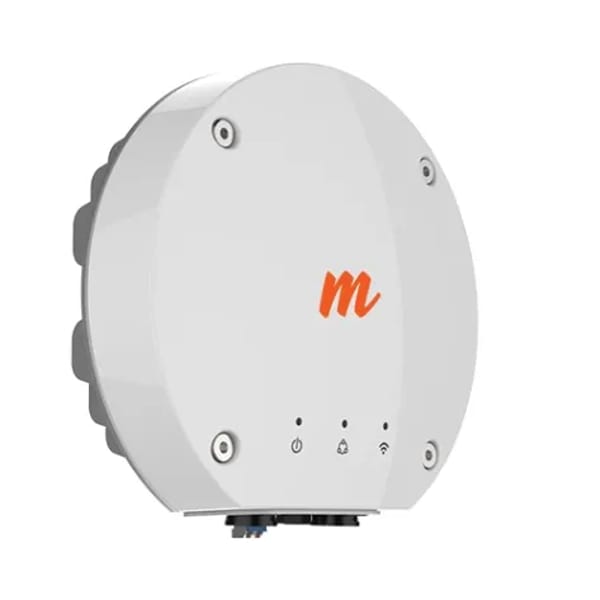

Physically, the B11 is rugged and compact. Its die-cast aluminum housing is IP67-rated, offering exceptional protection against dust, water, and environmental stressors. This weather-resistant construction ensures reliable operation in extreme climates, including temperatures ranging from –40°C to +55°C. A single 1 Gigabit Ethernet port with 802.3at PoE support powers the unit and provides data connectivity, simplifying cable management and installation. A secondary SFP+ port supports fiber connections and future-proofed network expansion, enabling seamless integration into high-capacity core networks.

The B11 also includes advanced network management capabilities via the Mimosa Cloud and Element software platforms. These platforms offer real-time diagnostics, link performance graphs, historical trend analysis, and centralized configuration for large-scale deployments. Operators can remotely monitor uptime, perform firmware updates, and adjust radio settings, all from a secure and intuitive interface, helping reduce operational costs and improve network availability.

In summary, the Mimosa B11 is a powerful and highly reliable backhaul radio that brings fiber-class performance to licensed microwave deployments. With high throughput, licensed spectrum operation, GPS sync, and robust build quality, it provides a compelling solution for service providers looking to expand capacity and reach without the expense and complexity of fiber infrastructure.
