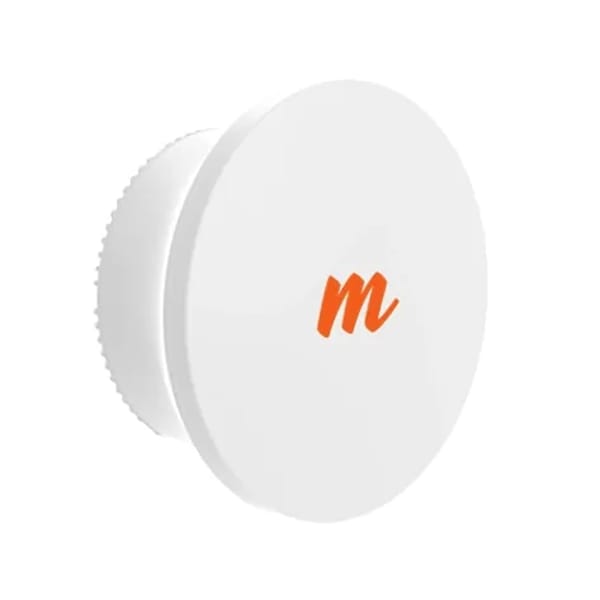

Mimosa Backhaul Radio (B24)

The Mimosa B24 is a breakthrough point-to-point wireless backhaul radio that brings fiber-class performance to the unlicensed 24 GHz spectrum. Built for modern service providers, enterprises, and network operators, the B24 combines Gigabit throughput with low latency and compact form factor, all in an affordable package. Designed to serve urban and suburban environments with short to medium-range needs, it offers an ideal solution for fiber extension, building-to-building connectivity, or backhaul for access points and cameras.

Operating in the license-free 24 GHz band, the B24 offers a refreshing alternative to congested 5 GHz and 60 GHz solutions. It uses 802.11ac Wave 2 technology and 2x2:2 MIMO with 256-QAM modulation to deliver up to 1.5 Gbps aggregate throughput. With support for 20, 40, and 80 MHz channel widths, the radio offers flexibility in tuning for optimal performance while maintaining regulatory compliance. The B24 is uniquely optimized for low-interference operation in the 24 GHz space, delivering exceptional spectral efficiency and reliability in urban deployments.

The B24 features an integrated 33 dBi high-gain dish antenna that focuses the signal for stable, high-throughput links over distances of up to 3 kilometers. Beamforming and automatic channel selection help maintain signal integrity even in noisy RF environments. The compact, lightweight design allows for easy rooftop or wall installations, and the IP67-rated enclosure ensures the radio withstands challenging weather conditions including rain, wind, dust, and extreme temperatures ranging from –40°C to +55°C.

Power and data connectivity are streamlined through a single Gigabit Ethernet port that supports 802.3at PoE, simplifying installation and minimizing infrastructure requirements. The B24’s low power consumption—typically under 20W—makes it suitable for deployments where power availability is limited, such as solar-powered sites or rooftop setups. Additionally, the radio includes built-in surge and ESD protection for added durability in electrically unstable environments.

One of the standout features of the B24 is its integrated GPS synchronization, which enables frequency reuse by allowing multiple units to operate on the same channel without interference. This enhances network scalability, especially in dense deployments. It also supports Mimosa’s Spectrum Analyzer and Link Calculator tools, which aid in identifying clean channels and projecting link performance for reliable planning and installation.

The B24 is fully compatible with Mimosa's Cloud and Element platforms, offering centralized monitoring, configuration, and troubleshooting. These systems allow operators to track device status, firmware versions, throughput performance, and RF conditions remotely, ensuring efficient management of even large-scale deployments.

In summary, the Mimosa B24 is a robust, high-capacity backhaul radio that combines affordability, performance, and ease of deployment. It is the ideal solution for extending high-speed connectivity where fiber is unavailable or cost-prohibitive.
