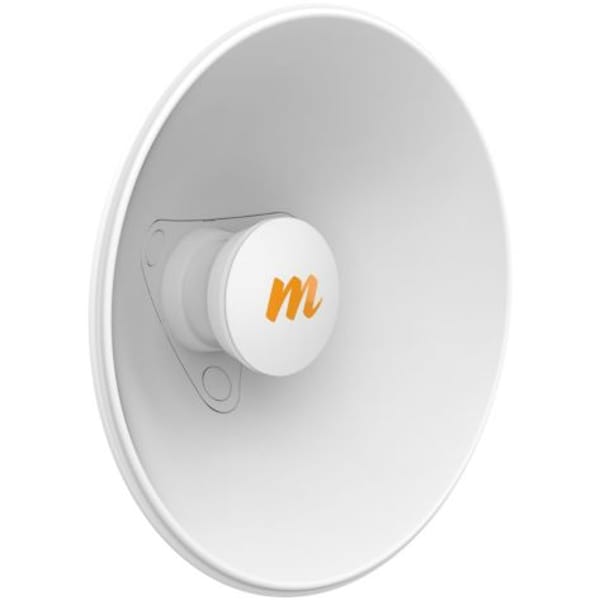

Mimosa N5-X20 Twist-on Dish Antenna 8-Pack (N5-X20-8P)

The Mimosa N5-X20-8P is an 8-pack of high-gain, modular antennas designed to extend the capability of Mimosa’s C5x and C6x radios in long-range wireless networking applications. Operating in the 4.9 to 6.4 GHz spectrum, these antennas deliver 20 dBi gain per unit and are engineered to support robust point-to-point (PTP) and point-to-multipoint (PTMP) configurations in diverse deployment environments. The twist-on modular design allows effortless integration with Mimosa radios, enabling network installers to scale up with minimal hardware complexity.

This 8-pack solution is ideal for service providers, network operators, or enterprises that require simultaneous deployments of multiple long-range links with consistent antenna performance. The 16° beamwidth of each antenna enables precise directional signal transmission and reception, minimizing co-channel interference and enhancing throughput. The narrow beam also provides superior signal focus, improving data integrity over long distances while maintaining optimal spectrum efficiency.

Each antenna is housed in a rugged, outdoor-ready enclosure that meets IP67 standards, ensuring resistance to dust, rain, and environmental challenges. Built for deployment in demanding climates, the antennas can withstand temperature variations from –40°C to +55°C and wind speeds up to 200 km/h. This makes them suitable for installation on towers, rooftops, or poles across urban, suburban, and rural environments.

When combined with Mimosa’s C5x or C6x radios, the N5-X20 antennas support advanced technologies like 2x2 MIMO, OFDM modulation, and up to 256-QAM performance, which collectively help deliver high-capacity data transmission rates. With the ability to support up to 700 Mbps IP throughput in PTP mode and up to 500 Mbps in PTMP deployments, the N5-X20-8P is well-suited for broadband backhaul, last-mile delivery, or enterprise networking.

The twist-on mounting system used in these antennas allows for quick, secure attachment to radios without the need for tools, saving time during mass deployment. Moreover, Mimosa’s proprietary GPS synchronization allows multiple radios operating in the same frequency range to coexist with reduced interference, enabling large-scale rollouts without compromising network performance.

Security features like AES-128 encryption, WPA2 compliance, and secure management protocols are available through the connected radios, ensuring the network remains protected from unauthorized access. Administrators can monitor antenna-linked radios via Mimosa Cloud or Element management platforms, providing a centralized view of signal strength, uptime, and usage analytics across all eight links.

In conclusion, the Mimosa N5-X20-8P is a scalable, high-gain antenna bundle purpose-built for performance, reliability, and ease of deployment. It offers a cost-effective solution for growing wireless networks while maintaining the precision and build quality expected from Mimosa’s modular antenna systems.
