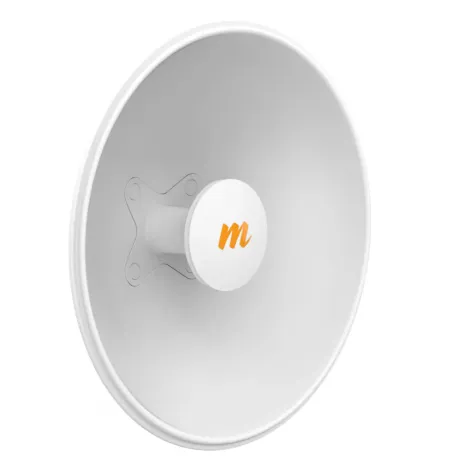

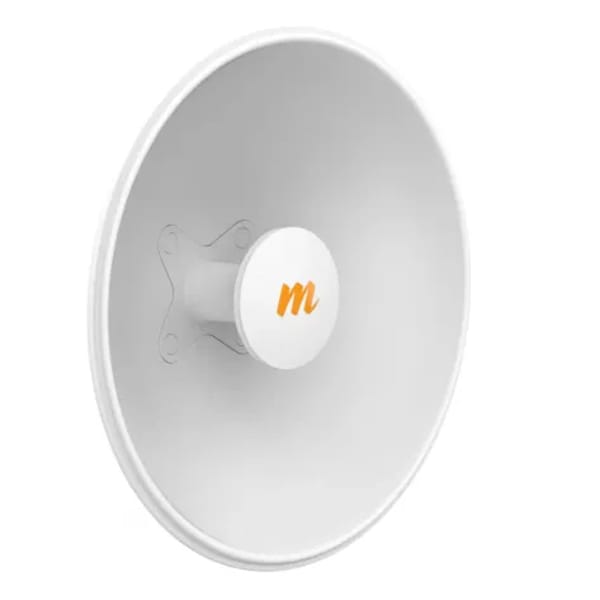

Mimosa N5-X25 Twist-on Dish Antenna 8-Pack (N5-X25-8P)

The Mimosa N5-X25-8P is an advanced antenna kit that includes eight high-performance 25 dBi antennas engineered for use with Mimosa C5x and C6x modular radios. Designed for long-range point-to-point (PTP) and point-to-multipoint (PTMP) wireless applications, this bundle delivers scalable, consistent performance for service providers and enterprise networks requiring simultaneous deployment of multiple high-gain links. Each antenna in the pack operates across the 4.9 to 6.4 GHz spectrum and utilizes Mimosa’s innovative twist-on design for seamless attachment to compatible radios, enabling flexible network expansion without complex installation procedures.

Each N5-X25 antenna offers a narrow 10° beamwidth, allowing for concentrated signal direction, minimized interference, and greater link reliability in high-density RF environments. This tight beam shaping is critical when deploying multiple links in the same area, as it supports greater spatial reuse and spectrum efficiency. The directional performance makes the antennas ideal for rural broadband coverage, enterprise building interconnects, and backhaul connections that demand focused signal strength and reduced signal leakage.

Built for durability, each antenna features an IP67-rated weatherproof enclosure that shields internal components from dust, rain, and other environmental hazards. The rugged design is suitable for extreme outdoor conditions, supporting operational temperatures from –40°C to +55°C and wind speeds up to 200 km/h. This ensures consistent uptime and reliability in all climates, including harsh desert or winter environments. The modular twist-on interface simplifies installation and reduces deployment time, allowing for rapid scale-out in growing network topologies.

When paired with Mimosa C5x or C6x radios, each N5-X25 antenna can help deliver wireless throughput of up to 700 Mbps in PTP mode and 500 Mbps in PTMP configurations. Technologies such as 2x2 MIMO, OFDM, and advanced modulation schemes up to 256-QAM ensure robust data rates and efficient use of spectrum. Additionally, when paired with radios supporting GPS synchronization, the antennas allow for coordinated co-channel deployments, significantly enhancing scalability and minimizing self-interference across dense networks.

The security features of the N5-X25-8P are inherited from the connected radios, offering enterprise-grade protections like 128-bit AES encryption, WPA2 authentication, and RADIUS support. These features ensure secure data transmissions across all links. Centralized network visibility and management are provided via Mimosa’s Cloud and Element platforms, offering real-time monitoring, performance analytics, firmware updates, and remote diagnostics—streamlining the maintenance of large, distributed deployments.

In summary, the Mimosa N5-X25-8P delivers a future-ready, high-capacity antenna solution designed for operators seeking high-performance, long-range wireless connectivity. With its precise beam control, rugged construction, and scalable deployment design, it is the optimal choice for building reliable and efficient outdoor wireless infrastructures.
