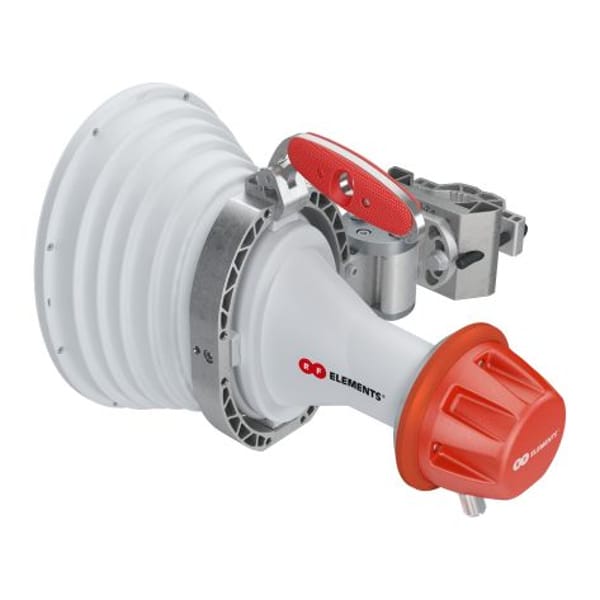

RF Elements AH30-CC Asymmetrical Horn CC Antenna

RF Elements AH30-CC Asymmetrical Horn CC Antenna

The RFE AH30-CC Asymmetrical Horn CC Antenna by RF elements delivers exceptional performance with a unique beam shape, noise rejection, and scalability. Ideal for high-performance networks.
SKU: AH30-CC
Warranty: 1 Year
UPC/EAN: 8588006459807

Product description

The RFE AH30-CC is an Asymmetrical Horn CC Antenna from RF elements that provides game-changing performance and market-leading system scalability. It features a unique beam shape and N-female connectors that provide excellent noise rejection, network scalability, and throughput increase.

The antenna has a unique asymmetrical beam shape, with an elliptical cross-section in bore sight that is wide in azimuth and narrow in elevation plane. This is useful for deployments where an asymmetrical beam shape delivers better coverage.

The Asymmetrical Horn CC Antenna has naturally depressed side lobes, focusing energy into a single main beam. This absence of side lobes enables excellent noise immunity. The radiation pattern of the antenna is stable over the whole frequency range, and it has balanced Horizontal and Vertical beam patterns. The antenna also provides increased gain when compared to Symmetrical Horn Antennas with the same azimuth beam width.

In summary, the RFE AH30-CC Asymmetrical Horn CC Antenna is a high-performance antenna that provides excellent coverage, noise rejection, and scalability for your network needs.The RFE AH30-CC is an Asymmetrical Horn CC Antenna from RF elements that provides game-changing performance and market-leading system scalability. It features a unique beam shape and N-female connectors that provide excellent noise rejection, network scalability, and throughput increase.

The antenna has a unique asymmetrical beam shape, with an elliptical cross-section in bore sight that is wide in azimuth and narrow in elevation plane. This is useful for deployments where an asymmetrical beam shape delivers better coverage.

The Asymmetrical Horn CC Antenna has naturally depressed side lobes, focusing energy into a single main beam. This absence of side lobes enables excellent noise immunity. The radiation pattern of the antenna is stable over the whole frequency range, and it has balanced Horizontal and Vertical beam patterns. The antenna also provides increased gain when compared to Symmetrical Horn Antennas with the same azimuth beam width.

In summary, the RFE AH30-CC Asymmetrical Horn CC Antenna is a high-performance antenna that provides excellent coverage, noise rejection, and scalability for your network needs.

Specification

General

Weight
5.6 kgs
UPC/EAN
8588006459807
Package Dimension
33 X 23.5 X 47.5 cms
Product Dimensions
33 X 23.5 X 47.5 cms
Warranty
1 Year
