SKU: AH90-TP

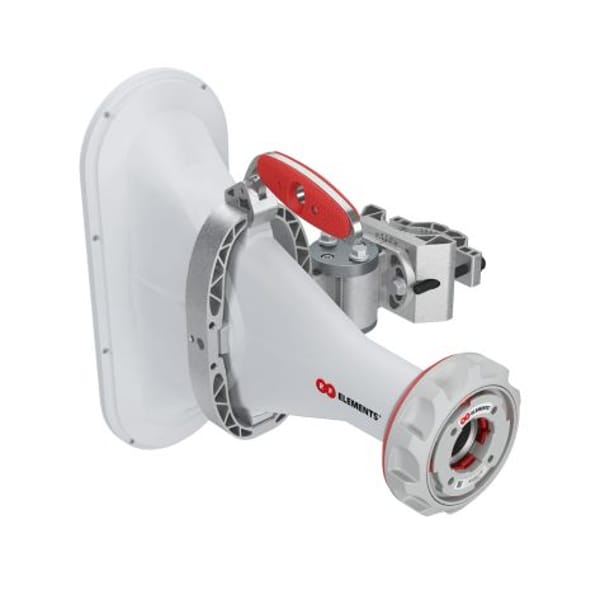

RF Elements AH90-TP Asymmetrical Horn TP Antenna

The RFE AH90-TP Asymmetrical Horn TP Antenna offers game-changing performance with an elliptical beam shape, wide frequency range, and Twist Port connector. Ideal for high-performance links.
limited stock - more arriving soon
your price: Login for your B2B price
Shipping: Sun, 28 Jul
1_Year Icon
Genuine Icon
100% Genuine
RF Elements
Expert

Expert Team Support

Ask us anything!

Email

24/7 Online

+971-58-5790025

Project Inquiry
Icon

Quick Shipping

Icon

Free shipping in UAE for all orders over AED 499

Revolutionizing B2B IT Procurement Worldwid

  • 6,000+ products from major brands
  • 100+ Trusted Vendors
  • Certified Installation Partners
  • Collaborating with FedEx, UPS, DHL
  • Multiple Payment Options
Placeholder

Detailed description

The RFE AH90-TP is an Asymmetrical Horn TP Antenna from RF elements. It was previously known as HG3-TP-A90-V2. This antenna provides game-changing performance, market-leading system scalability, and a unique beam shape. The Asymmetrical Horn TP Antennas have a unique beam shape that is elliptical in the bore sight, wide in azimuth, and narrow in the elevation plane. This is useful for deployments where an asymmetrical beam shape delivers better coverage.

The Asymmetrical Horn TP Antennas have naturally depressed side lobes, which means they focus energy into a single main beam. This enables excellent noise immunity for the antennas.

The radiation pattern of the Asymmetrical Horn TP Antennas is stable over the entire frequency range, and the antennas have balanced horizontal and vertical beam patterns. These features are critical for link performance.

The Asymmetrical Horn TP Antennas provide increased gain when compared to Symmetrical Horn TP Antennas with the same azimuth beam width. They cover an ultra-wide frequency range of 5.18 - 6 GHz with excellent VSWR performance.

The antennas also feature RF elements’ industry-changing TwistPort TM connector, a patent-pending quick-locking waveguide port that is virtually lossless and allows for easy connection of radios with a simple “twist and lock” motion.

Overall, the RFE AH90-TP Asymmetrical Horn TP Antenna is a high-performance antenna that provides excellent noise rejection, network scalability, and throughput increase. It is a valuable addition to any wireless network deployment.

Specification

General

Weight 6.85 kgs
UPC/EAN 8588006459777
Package Dimension 55 X 36.5 X 14.5 cms
Product Dimensions 55 X 36.5 X 14.5 cms
Warranty 1 Year
