SKU: AS-5-20

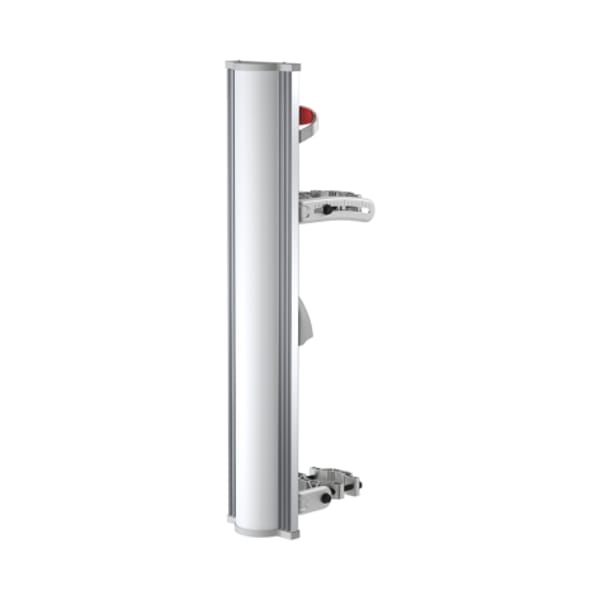

RF Elements AS-5-20 Array Sector Antenna

The RFE AS-5-20 is a high-performance Array Sector 5-20 antenna, featuring BackShield tech for noise reduction. Ideal for high-density areas with easy RP-SMA connectors and durability.Read More
Request a quote
limited stock - more arriving soon
your price: Login for your B2B price
1_Year Icon
Genuine Icon
100% Genuine
RF Elements
Expert

Expert Team Support

Ask us anything!

Email

24/7 Online

+971-58-5790025

Project Inquiry
Icon

Quick Shipping

Icon

Free shipping in UAE for all orders over AED 499

Placeholder

Revolutionizing B2B IT Procurement Worldwide

  • 6,000+ products from major brands
  • 100+ Trusted Vendors
  • Certified Installation Partners
  • Collaborating with FedEx, UPS, DHL
  • Multiple Payment Options

Detailed description

The RFE AS-5-20 is an Array Sector 5-20 from RF elements. It is a sector antenna with carrier class performance that provides exceptional RF performance, colocation capability, ease of installation, and cost efficiency.

The antenna features the patented BackShieldâ„¢, a frequency selective surface that attenuates the side lobes in the azimuth plane and back radiation, integrated directly into the antenna body. The Array Sector 5-20 operates in an extremely wide frequency band, has balanced gain in both polarizations, and offers unmatched main lobe stability for superior coverage performance.

Some technical data for the RFE AS-5-20 include:
Antenna Connection: 2x RP-SMA on integrated semi-flex pigtails
Antenna Type: Patch Array Sector
Materials: UV Resistant ABS Plastic, Aluminium Alloy, Stainless Steel
Environmental: IP55
Temperature: -35°C to +60°C (-31°F to +140°F)
Wind Survival: 160 km/h (100 mi/h)
Wind Load: 217/65 N - Front/Side at 160 km/h (100 mi/h)
Pole Mounting Diameter: 40-80 mm (1.5-3.1 inch) Recommend as close to 80 mm (3.1 inch) as possible
Weight: 3.5 kg (7.7 lbs) – single unit; 3.8 kg (8.3 lbs) – single unit incl. package.

The RFE AS-5-20 is an excellent choice for those looking for a high-performance sector antenna with advanced features and easy installation. Its BackShieldâ„¢ technology and noise rejection capabilities make it ideal for use in high-density environments, while its RP-SMA connectors ensure quick and easy installation. With its durable construction and advanced design, the RFE AS-5-20 is sure to provide reliable performance for years to come.

Specification

General

Package Dimension 83.4 x 19 x 28.7 cm
Warranty 1 Year
