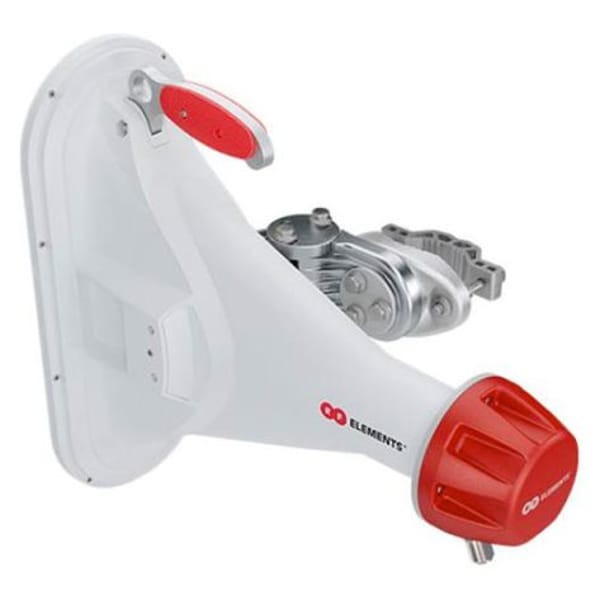

RF Elements HG3-CC-A90-V2 Asymmetrical Horn Antenna

RFE HG3-CC-A90-V2, a 90° Asymmetrical Beam Antenna by RF elements, excels in rural deployments. Unique pattern, high gain, durability, IP55 rating, 5.18-6 GHz range, precise rural performance.
Request a quote
limited stock - more arriving soon
your price: Login for your B2B price
1_Year Icon
Genuine Icon
100% Genuine
RF Elements
Expert

Expert Team Support

Ask us anything!

Email

24/7 Online

+971-58-5790025

Project Inquiry
Icon

Quick Shipping

Icon

Free shipping in UAE for all orders over AED 499

Revolutionizing B2B IT Procurement Worldwid

  • 6,000+ products from major brands
  • 100+ Trusted Vendors
  • Certified Installation Partners
  • Collaborating with FedEx, UPS, DHL
  • Multiple Payment Options
Placeholder

Detailed description

The RFE HG3-CC-A90-V2 is a 90° Asymmetrical Beam Antenna from RF elements. It has a radiation pattern that is narrow in the azimuth and wide in the elevation plane, which greatly improves coverage planning options. The increased gain and zero side lobes make it suitable for rural deployments.

The antenna features two N-female connectors and is made of UV resistant ABS plastic, polycarbonate, HDPE, aluminum, and stainless steel. It has an environmental rating of IP55 and can be mounted on poles with a diameter of 40-80 mm. The antenna can withstand temperatures ranging from -35°C to +60°C (-31°F to +140°F) and wind speeds up to 160 km/hour.

In terms of performance, the RFE HG3-CC-A90-V2 operates in the frequency range of 5.18 - 6 GHz and has a gain of 16 dBi. The azimuth beam width is 60° for both horizontal and vertical polarization at -3 dB, while the elevation beam width is 16° for both horizontal and vertical polarization at -3 dB. The front-to-back ratio is 30 dB and the VSWR is a maximum of 1.8 for the entire frequency range.

Overall, the RFE HG3-CC-A90-V2 is a high-quality antenna that offers excellent performance and coverage options for rural deployments.

Specification

General

Weight 6.8 kgs
UPC/EAN 8588006459821
Package Dimension 48 X 42 X 19 cms
Product Dimensions 48 X 42 X 19 cms
Warranty 1 Year
