SKU: HG3-CC-S30

RF Elements HG3-CC-S30 Symmetrical Horn CC Antenna

RFE HG3-CC-S30 Symmetrical Horn Gen 2 Antenna by RF elements offers remarkable RF performance. Ideal for high-density setups, 5.18-6.4 GHz range, 18.4 dBi gain, durable, versatile, and reliable for wireless networking.
Request a quote
limited stock - more arriving soon
your price: Login for your B2B price
1_Year Icon
Genuine Icon
100% Genuine
RF Elements
Expert

Expert Team Support

Ask us anything!

Email

24/7 Online

+971-58-5790025

Project Inquiry
Icon

Quick Shipping

Icon

Free shipping in UAE for all orders over AED 499

Revolutionizing B2B IT Procurement Worldwid

  • 6,000+ products from major brands
  • 100+ Trusted Vendors
  • Certified Installation Partners
  • Collaborating with FedEx, UPS, DHL
  • Multiple Payment Options
Placeholder

Detailed description

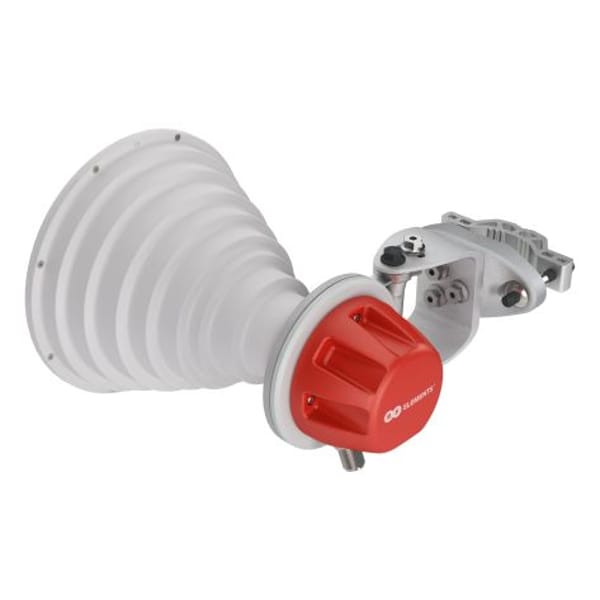

The RFE HG3-CC-S30 is a Symmetrical Horn Carrier Class Gen 2 antenna from RF elements. This horn antenna offers unique RF performance in a compact package and is equipped with N-female connectors.

Scalar horn antennas have symmetrical main beams with identical beam widths in the vertical and horizontal planes. Exceptionally small side lobes ensure remarkable interference suppression.

HG3-CC Gen2 Antennas are ideal for coverage of areas with clients close to the installation site, where null zone issues exist. High-density AP clusters and radio co-location are made possible due to unique radiation patterns and compact size.

The RFE HG3-CC-S30 also has impressive performance specifications, such as a frequency range of 5.18 - 6.4 GHz, gain of 18.4 dBi, and dual linear H + V polarization. The antenna is made of UV-resistant polycarbonate, polypropylene, aluminum, zinc, and stainless steel, and has an environmental rating of IP55.

It can be mounted on poles with diameters ranging from 30-90 mm and has a mechanical tilt of ± 25°.

In summary, the RFE HG3-CC-S30 Symmetrical Horn CC antenna is a high-performance, compact, and versatile solution for wireless networking applications.

Specification

General

Weight 18 kgs
UPC/EAN 8588006459388
Package Dimension 28 X 23.5 X 41.5 cms
Product Dimensions 28 X 23.5 X 41.5 cms
Warranty 1 Year
