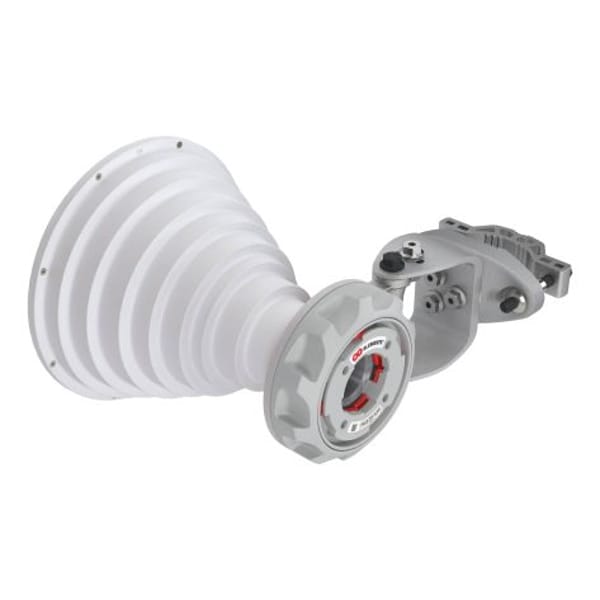

RF Elements HG3-TP-S30 Symmetrical Horn TP Antenna

RFE HG3-TP-S30 Symmetrical Horn TP Antenna Gen2 by RF elements features Twist Port for lossless connectivity, symmetrical pattern, noise rejection, 5.18-6.7 GHz, 18.4 dBi gain. Ideal for high-density setups.
limited stock - more arriving soon
your price: Login for your B2B price
Shipping: Sun, 28 Jul
1_Year Icon
Genuine Icon
100% Genuine
RF Elements
Expert

Expert Team Support

Ask us anything!

Email

24/7 Online

+971-58-5790025

Project Inquiry
Icon

Quick Shipping

Icon

Free shipping in UAE for all orders over AED 499

Revolutionizing B2B IT Procurement Worldwid

  • 6,000+ products from major brands
  • 100+ Trusted Vendors
  • Certified Installation Partners
  • Collaborating with FedEx, UPS, DHL
  • Multiple Payment Options
Placeholder

Detailed description

The RFE HG3-TP-S30 is a Symmetrical Horn TP Antenna Gen2 from RF elements. It features a TwistPortT connector, which is a patent-pending quick-locking waveguide port that is virtually lossless and easy to use1. The antenna has a symmetrical beam pattern with no sidelobes, offering excellent noise rejection and supreme scalability options. It is perfect for high-density AP clusters and dense radio co-location.

The Symmetrical Horn TP Antennas Gen2 has multiple improvements on RF performance and industrial design, including an optically lighter antenna body and significantly improved antenna bracket. The radome is made of more resistant material, and the whole range of Gen2 antennas only uses two different radome sizes.

The antenna operates in the frequency range of 5.18 - 6.7 GHz and has a gain of 18.4 dBi. The azimuth and elevation beam width is 21° at -3 dB and 30° at -6 dB.

Overall, the RFE HG3-TP-S30 Symmetrical Horn TP Antenna Gen2 is a high-performance antenna that offers excellent noise rejection, network scalability, and throughput increase. It is suitable for a wide range of deployment scenarios and is perfect for high-density cluster sector installations with high co-location requirements.

Specification

General

Weight 18 kgs
UPC/EAN 8588006459302
Package Dimension 28 X 23.5 X 41.5 cms
Warranty 1 Year
