SKU: HG3-TP-S50

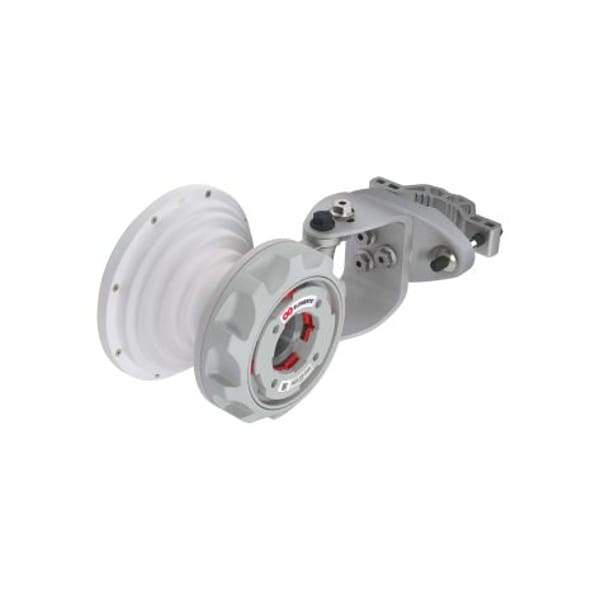

RF Elements HG3-TP-S50 Symmetrical Horn TP Antenna

RFE HG3-TP-S50 Symmetrical Horn TP Antenna Gen2 by RF elements excels in noise rejection and scalability. Twist Port connector, 5180-6400 MHz, 14.3 dBi gain, ideal for high-performance wireless networks.
Request a quote
limited stock - more arriving soon
your price: Login for your B2B price
1_Year Icon
Genuine Icon
100% Genuine
RF Elements
Expert

Expert Team Support

Ask us anything!

Email

24/7 Online

+971-58-5790025

Project Inquiry
Icon

Quick Shipping

Icon

Free shipping in UAE for all orders over AED 499

Revolutionizing B2B IT Procurement Worldwid

  • 6,000+ products from major brands
  • 100+ Trusted Vendors
  • Certified Installation Partners
  • Collaborating with FedEx, UPS, DHL
  • Multiple Payment Options
Placeholder

Detailed description

The RFE HG3-TP-S50 is a Symmetrical Horn TP Antenna Gen2 from RF elements. It features a TwistPortâ„¢ connector, which is a patent-pending quick-locking waveguide port that is virtually lossless and easy to use.

The antenna has a symmetrical beam pattern with no sidelobes, offering excellent noise rejection and supreme scalability options. It is perfect for high-density AP clusters and dense radio co-location.

The Symmetrical Horn TP Antennas Gen2 has multiple improvements on RF performance and industrial design, including an optically lighter antenna body and significantly improved antenna bracket. The radome is made of more resistant material, and the whole range of Gen2 antennas only uses two different radome sizes.

The antenna operates in the frequency range of 5180 - 6400 MHz and has a gain of 14.3 dBi. It is designed to withstand wind speeds of up to 160 km/h (100 mi/h) and temperatures ranging from -30°C to +55°C (-22°F to +131°F).

Overall, the RFE HG3-TP-S50 Symmetrical Horn TP Antenna Gen2 is a high-performance antenna that offers excellent noise rejection, scalability, and ease of use.

Specification

General

Weight 24.5 kgs
UPC/EAN 8588006459326
Package Dimension 31 X 18.5 X 24 cms
Product Dimensions 31 X 18.5 X 24 cms
Warranty 1 Year
