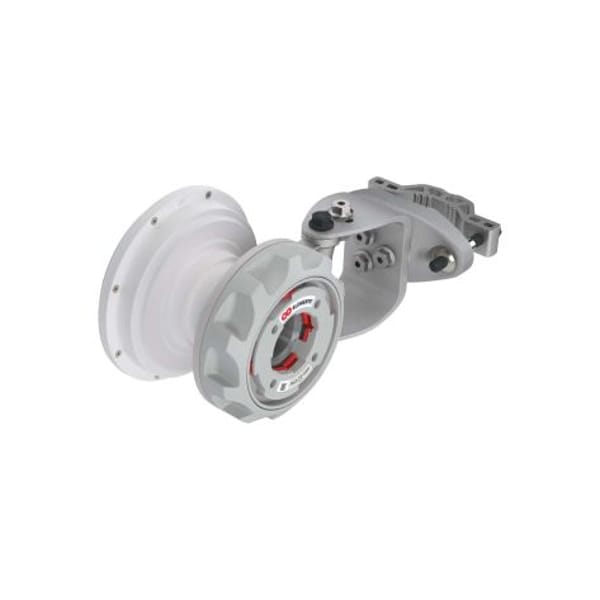

RF Elements HG3-TP-S60 Symmetrical Horn TP Antenna

RF Elements HG3-TP-S60 Symmetrical Horn TP Antenna

The RF elements RFE HG3-TP-S60 Gen2 Symmetrical Horn TP Antenna is designed for high-density AP clusters and co-location setups. Its Twistport connector ensures easy installation and robust performance with weather resistance.
SKU: HG3-TP-S60
Warranty: 1 Year
UPC/EAN: 8588006459333
Availability

Dispatched in 2-3 working days

Product description

The RFE HG3-TP-S60 is a Symmetrical Horn TP Antenna Gen2 from RF elements. It features a symmetrical beam pattern with no sidelobes, offering excellent noise rejection and supreme scalability options. It is perfect for high-density AP clusters and dense radio co-location.

The Symmetrical Horn TP Antennas Gen2 features the industry-changing TwistPort™ connector, a patent-pending quick-locking waveguide port that is virtually lossless and revolutionary, and easy to use. The Gen2 version of the antenna features multiple improvements in RF performance and industrial design, including an optically lighter antenna body, a significantly improved antenna bracket, and a radome made of more resistant material.

Some technical data for the RFE HG3-TP-S60 include:
Antenna Connection: TwistPort™ - Quick Locking Waveguide Port
Antenna Type: Horn
Materials: UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminium, Stainless Steel
Environmental: IP55
Flame Rating: UL 94 HB
Pole Mounting Diameter: 30-90 mm
Temperature: -30°C to +55°C (-22°F to +131°F)
Wind Survival: 160 km/hour
Wind Loading: 22 N at 160 km/hour
Mechanical Tilt: ± 25°
Weight: 1.4 Kg / 3.0 lbs – single unit; 2.2 Kg / 4.8 lbs – single unit incl. package; 23.3 Kg / 51.4 lbs – carton (10 units).

The RFE HG3-TP-S60 is an excellent choice for those looking for a high-performance antenna with advanced features and easy installation. Its symmetrical beam pattern and noise rejection capabilities make it ideal for use in high-density environments, while its TwistPort™ connector ensures quick and easy installation. With its durable construction and advanced design, the RFE HG3-TP-S60 is sure to provide reliable performance for years to come.

Specification

General

Weight
25 kgs
UPC/EAN
8588006459333
Package Dimension
31 X 18.5 X 24 cms
Product Dimensions
31 X 18.5 X 24 cms
Warranty
1 Year
