SKU: STA-SMA

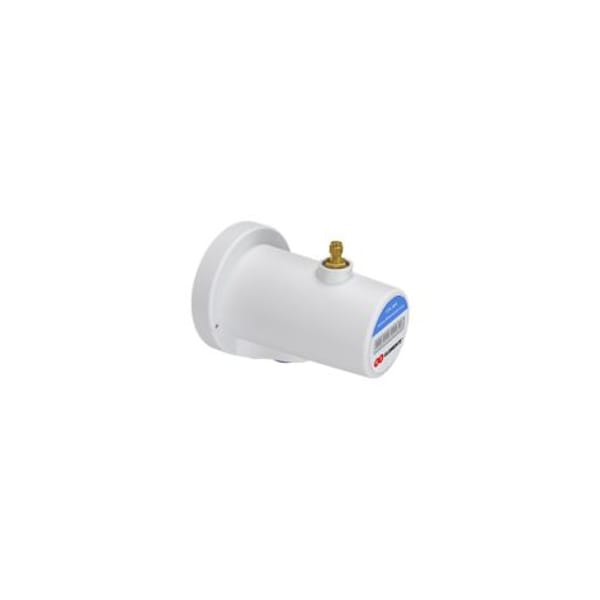

RF Elements STA-SMA Starter Adapter

The RFE STA-SMA is a versatile StarterAdapter by RF elements, linking SMA-RP radios to StarterDish antennas. Wide spectrum coverage, low VSWR, ideal for high-density areas, durable performance.
limited stock - more arriving soon
your price: Login for your B2B price
Shipping: Sun, 28 Jul
1_Year Icon
Genuine Icon
100% Genuine
RF Elements
Expert

Expert Team Support

Ask us anything!

Email

24/7 Online

+971-58-5790025

Project Inquiry
Icon

Quick Shipping

Icon

Free shipping in UAE for all orders over AED 499

Revolutionizing B2B IT Procurement Worldwid

  • 6,000+ products from major brands
  • 100+ Trusted Vendors
  • Certified Installation Partners
  • Collaborating with FedEx, UPS, DHL
  • Multiple Payment Options
Placeholder

Detailed description

The RFE STA-SMA is a versatile StarterAdapter by RF elements, enabling seamless connections between radios with SMA-RP connectors and StarterDish™ antennas. With a wide 5150-5950 MHz spectrum coverage, low VSWR, and minimal signal loss, it's perfect for high-density environments. Its robust

The RFE STA-SMA is a StarterAdapter™ SMA from RF elements. It is an adapter that allows the connection of any radio with SMA-RP connectors to any StarterDish™ antenna. The StarterAdapter™ SMA connects to StarterDish™ antennas and provides female RP-SMA connectors, which is a standard coaxial interface for any 3rd party radios. The STA-SMA has dual linear H+V polarization.

The STA-SMA covers a wide spectrum of 5150 - 5950 MHz with VSWR well below 1.8 throughout the whole bandwidth. The adapter introduces practically zero attenuation in the waveguide part, as it is a waveguide-based adapter. The transition from coaxial connectors to waveguide feeder is optimized for minimum loss as well.

Some technical data for the RFE STA-SMA include:
Antenna Connection: Waveguide Port
Radio Connection: 2x RP-SMA female
Materials: Insert - Aluminium Alloy, Adapter - UV stabilized and weather-resistant ABS plastic
Flame Rating: UL 94 HB
Temperature: -40°C to +60°C (-40°F to +140°F)
Wind Survival: 160 km/h (100 mi/h)

The RFE STA-SMA is an excellent choice for those looking for an adapter that allows the connection of any radio with SMA-RP connectors to any StarterDish™ antenna. Its wide frequency range and low VSWR make it ideal for use in high-density environments, while its waveguide-based design ensures minimal loss. With its durable construction and advanced design, the RFE STA-SMA is sure to provide reliable performance for years to come.

 build ensures long-lasting, reliable performance.

Specification

General

Weight 31 kgs
UPC/EAN 8588006459463
Package Dimension 15 x 9 x 10
Product Dimensions 15 x 9 x 10
Warranty 1 Year
