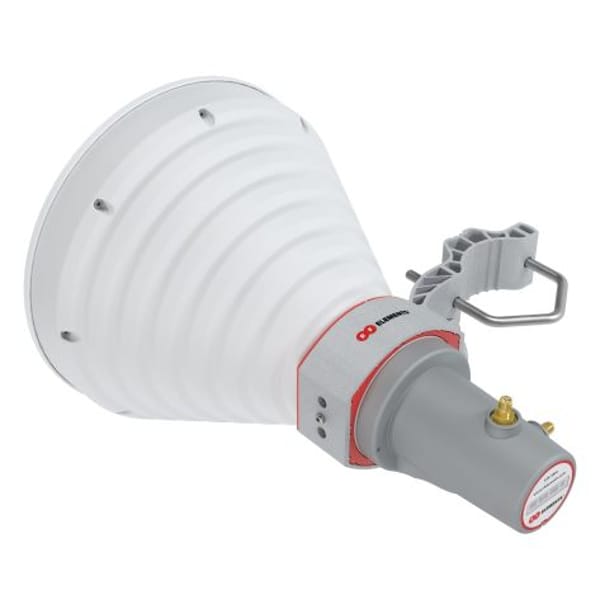

RF Elements STH-30-USMA Horn Sector Antenna

RF Elements STH-30-USMA Horn Sector Antenna

RFE STH-30-USMA StarterHorn 30° USMA by RF elements delivers affordability, noise rejection, and stability. Ideal for high-density setups with RP-SMA and waveguide connectors. Durable with an IP55 rating.
Warranty: 1 Year
UPC/EAN: 8588006459661

Dispatched in 2-3 working days

Product description

The RFE STH-30-USMA is a StarterHorn™ 30° USMA from RF elements1. It is an affordable horn sector antenna with excellent noise rejection and coverage stability. The StarterHorn™ 30° USMA has a unique radiation pattern, with the main beam being symmetrical and having a circular cross-section. The azimuth and elevation beam widths are both 30° at -6dB.

The StarterHorn™ 30° USMA offers great noise rejection for high-density AP clusters and dense co-location, providing excellent performance in a cost-effective package. It offers an RP-SMA female connector interface for H and V antenna polarizations for connectivity to any third-party radio on the market. It also allows for the use of UBNT radios with a waveguide connector.

Some technical data for the RFE STH-30-USMA include:
Antenna Connection: RP-SMA Port, Waveguide Port
Antenna Type: Symmetrical Horn
Materials: UV Resistant ABS Plastic, Polyethylene, Aluminium, Stainless Steel
Environmental: IP55
Flame Rating: UL 94 HB
Pole Mounting Diameter: 20-55 mm (0.8-2.1 inch)
Temperature: -30°C to +55°C (-22°F to +131°F)
Wind Survival: 160 km/h (100 mi/h)
Wind Load: 52/21 N - Front/Side at 160 km/h (100 mi/h)
Mechanical Tilt: ± 30°

The RFE STH-30-USMA is an excellent choice for those looking for an affordable horn sector antenna with advanced features and easy installation. Its symmetrical beam pattern and noise rejection capabilities make it ideal for use in high-density environments, while its RP-SMA and waveguide connectors ensure quick and easy installation. With its durable construction and advanced design, the RFE STH-30-USMA is sure to provide reliable performance for years to come.



22.1 kgs
Package Dimension
24 X 27 X 24.5 cms
Product Dimensions
24 X 27 X 24.5 cms
1 Year
