SKU: STH-A45-USMA

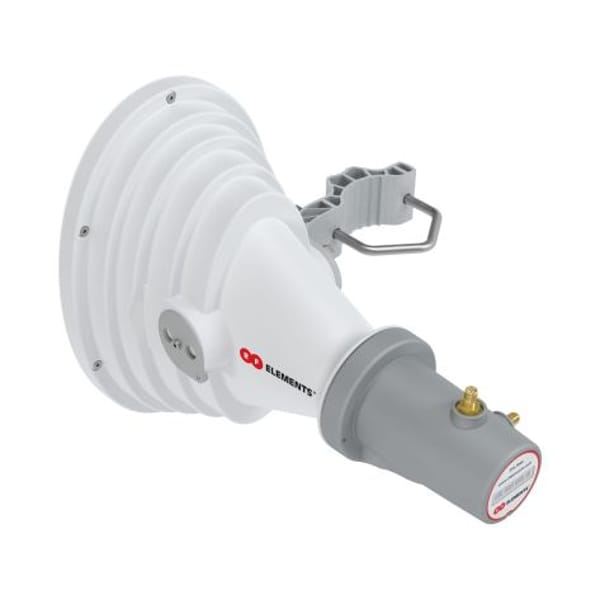

RF Elements STH-A45-USMA Asymmetrical Horn Antenna

RFE STH-A45-USMA: Affordable horn sector antenna by RF elements for high-density setups. Asymmetrical beam, noise rejection, waveguide, RP-SMA connectors, durable with IP55 rating for reliable performance.Read More
Request a quote
limited Inventory - more arriving soon
your price: Login for your B2B price
Shipping: Sun, 23 Feb
1_Year Icon
Genuine Icon
100% Genuine
RF Elements
Expert

Expert Team Support

Ask us anything!

Email

24/7 Online

+971-58-5790025

Project Inquiry
Icon

Quick Shipping

Icon

Free shipping in UAE for all orders over AED 499

Placeholder

Revolutionizing B2B IT Procurement Worldwide

  • 6,000+ products from major brands
  • 100+ Trusted Vendors
  • Certified Installation Partners
  • Collaborating with FedEx, UPS, DHL
  • Multiple Payment Options

Detailed description

The RFE STH-A45-USMA is a StarterHorn™ A45° USMA from RF elements. It is a cost-effective horn sector antenna with excellent noise rejection1. The StarterHorn™ A45° USMA has a unique radiation pattern, with the main beam being asymmetrical and having an elliptical cross-section. The azimuth beam width is 45° and the elevation beam width is 30°, both measured at -6dB.

The StarterHorn™ A45° USMA offers great noise rejection for high-density AP clusters and dense co-location, providing excellent performance in a cost-effective package1. It offers both waveguide and RP-SMA female connector interfaces for easy connectivity to any third-party radio on the market, including direct connectivity to UI radios with a waveguide interface.

Some technical data for the RFE STH-A45-USMA include:
Antenna Connection: Waveguide Port, RP-SMA Port
Antenna Type: Asymmetrical Horn
Materials: UV Resistant ABS Plastic, Polyethylene, Aluminium, Stainless Steel
Environmental: IP55
Flame Rating: UL 94 HB
Pole Mounting Diameter: 20-55 mm (0.8-2.1 inch)
Temperature: -30°C to +55°C (-22°F to +131°F)
Wind Survival: 160 km/h (100 mi/h)
Wind Load: 34/27 N - Front/Side at 160 km/h (100 mi/h)
Mechanical Tilt: ± 30°

The RFE STH-A45-USMA is an excellent choice for those looking for an affordable horn sector antenna with advanced features and easy installation. Its asymmetrical beam pattern and noise rejection capabilities make it ideal for use in high-density environments, while its waveguide and RP-SMA connectors ensure quick and easy installation. With its durable construction and advanced design, the RFE STH-A45-USMA is sure to provide reliable performance for years to come.

Specification

General

UPC/EAN8588006459890
Package Dimension 23.7 X 24.5 X 16.2 cms
Product Dimensions23.7 X 24.5 X 16.2 cms
Warranty1 Year
