RF Elements TP-ADAP-C5C Twist Port Adaptor

RF Elements TP-ADAP-C5C Twist Port Adaptor

RFE TP-ADAP-C5C integrates Mimosa C5c radio into TwistPort for superior performance, noise immunity, and scalability. Quick, tool-free installation. Ideal for high-density areas, durable, and reliable.
SKU: TP-ADAP-C5c
Warranty: 1 Year
UPC/EAN: 8588006459258
Availability

Dispatched in 2-3 working days

Product description

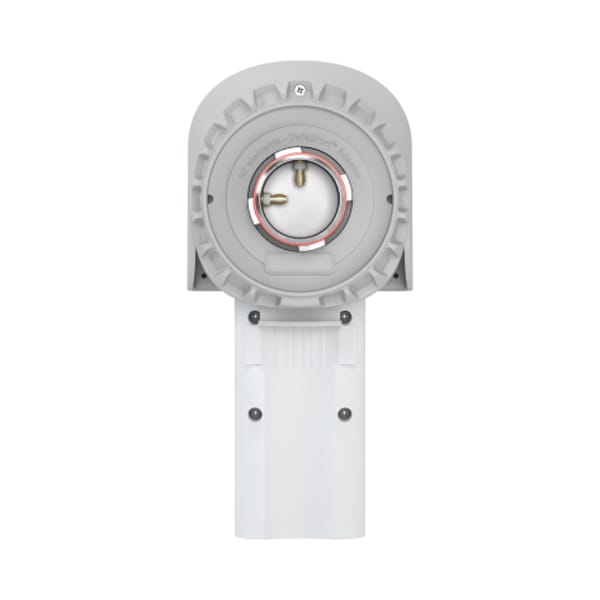

The RFE TP-ADAP-C5C is a TwistPort™ Adaptor for Mimosa C5c from RF elements. It integrates the Mimosa C5c connectorized radio into the TwistPort™ eco-system.

The TwistPort™ Adaptor converts the 3rd party radio interface into an RF elements® male TwistPort™ interface. The radio installation is seamless and requires no tools. The adaptor makes the 3rd party radios compatible with every TwistPort™ antenna with superior performance, noise immunity, and network scalability.

The TwistPort™ Adaptor for Mimosa C5c makes the radio compatible with all TwistPort™ Antennas. TwistPort™ Adaptors are equipped with our original quick-locking waveguide port. Connecting and disconnecting the C5c from the TwistPort™ Adaptor is very simple and requires no tools.

Some technical data for the RFE TP-ADAP-C5C include:
Antenna Connection: TwistPort™ - Quick Locking Waveguide Port
Radio Connection: 2x Slide-On RP-SMA
Materials: Insert - Aluminium Alloy, Adaptor - UV stabilized and weather-resistant ABS plastic
Flame Rating: UL 94 HB
Temperature: -40°C to +60°C (-40°F to +140°F)
Wind Survival: 160 km/h.

The RFE TP-ADAP-C5C is an excellent choice for those looking for an adaptor that integrates the Mimosa C5c connectorized radio into the TwistPort™ eco-system. Its wide frequency range and low VSWR make it ideal for use in high-density environments, while its quick-locking waveguide port ensures quick and easy installation. With its durable construction and advanced design, the RFE TP-ADAP-C5C is sure to provide reliable performance for years to come.

Specification

General

Weight
10 kgs
UPC/EAN
8588006459258
Package Dimension
13.5 x 11.5 x 13
Product Dimensions
13.5 x 11.5 x 13
Warranty
1 Year
