SKU: UH-TP-5-24

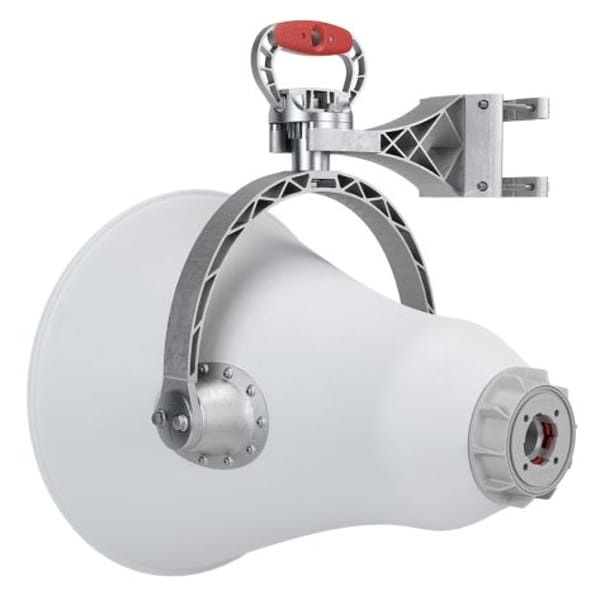

RF Elements UH-TP-5-24 Directional Horn Antenna

RFE UH-TP-5-24 UltraHorn TP 5-24 by RF elements: high-gain, symmetrical beam, TwistPort connector, noise rejection, durable (IP55), ideal for high-density setups, reliable directional coverage.
Request a quote
limited stock - more arriving soon
your price: Login for your B2B price
1_Year Icon
Genuine Icon
100% Genuine
RF Elements
Expert

Expert Team Support

Ask us anything!

Email

24/7 Online

+971-58-5790025

Project Inquiry
Icon

Quick Shipping

Icon

Free shipping in UAE for all orders over AED 499

Revolutionizing B2B IT Procurement Worldwid

  • 6,000+ products from major brands
  • 100+ Trusted Vendors
  • Certified Installation Partners
  • Collaborating with FedEx, UPS, DHL
  • Multiple Payment Options
Placeholder

Detailed description

The RFE UH-TP-5-24 is an UltraHorn™ TP 5-24 from RF elements. It is a high-gain, highly directional scalar horn antenna that offers ultra noise rejection, lossless connection of radio, and a symmetrical beam with no side lobes.

The UltraHorn™ TP Antennas are equipped with a unique TwistPort™ connector, a patent-pending quick-locking waveguide port that is virtually lossless and easy to use. The antennas support a wide range of third-party radios from mainstream vendors with TwistPort™ Adaptors.

Some technical data for the RFE UH-TP-5-24 include:
Antenna Connection: TwistPort™ - Quick Locking Waveguide Port
Antenna Type: Horn
Materials: UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminium, Stainless Steel
Environmental: IP55
Pole Mounting Diameter: 30-80 mm (1.2-3.1 inch)
Temperature: -30°C to +55°C (-22°F to +131°F)
Wind Survival: 160 km/h (100 mi/h)
Wind Load: 150/104 N - Front/Side at 160 km/h (100 mi/h)
Mechanical Adjustment: ± 25° Elevation, ± 25° Azimuth

The RFE UH-TP-5-24 is an excellent choice for those looking for a high-performance directional antenna with advanced features and easy installation. Its symmetrical beam pattern and noise rejection capabilities make it ideal for use in high-density environments, while its TwistPort™ connector ensures quick and easy installation. With its durable construction and advanced design, the RFE UH-TP-5-24 is sure to provide reliable performance for years to come.

Specification

General

Weight 12.95 kgs
UPC/EAN 8588006459272
Package Dimension 57 X 56.5 X 63.5 cms
Product Dimensions 57 X 56.5 X 63.5 cms
Warranty 1 Year
