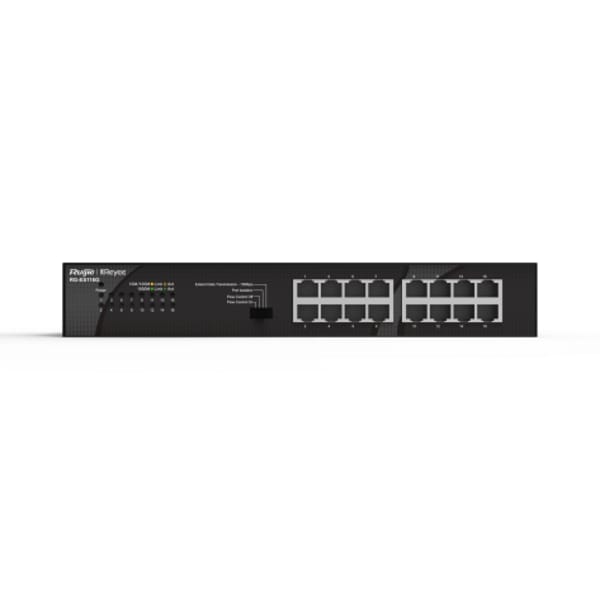

Ruijie RG-ES116G Unmanaged Non-PoE Switch

The Ruijie RG-ES116G is a high-performance unmanaged Gigabit Ethernet switch designed to meet the demands of modern networking. With sixteen 10/100/1000Base-T auto-sensing Ethernet ports, this switch offers seamless connectivity for a variety of applications.

Equipped with a port mode switchover button and LED indicators on the front panel, the RG-ES116G provides users with convenient control and monitoring. The port mode switchover allows for flexible operation in four modes: Flow Control On/Off, Port Isolation, and Extend Data Transmission at 10 Mbps. This versatility ensures the switch adapts to different networking requirements.

The switch operates within a temperature range of 0°C to 45°C (32°F to 113°F), making it suitable for various environments. Its compact dimensions and lightweight design contribute to its versatility and ease of deployment.

The RG-ES116G adopts natural heat dissipation, ensuring normal operation without the need for a fan. With a grounding pole and AC power port on the back panel, it provides stability and reliability.

LED indicators on the front panel include system status and RJ45 port status LEDs. The system status LED indicates whether the switch is powered off or operational, while the RJ45 port status LEDs show the connection status and speed (10/100/1000 Mbps) of each port.

The switch is designed to meet certification standards, including CE, and features an earth leakage current of ≤1.5mA. Its package ensures ease of handling and installation.

Designed for stability and energy efficiency, the fanless and quiet design contributes to a green environment, adhering to the 802.3az standard for energy savings. The RG-ES116G adheres to strict standards in PCB design and component selection, ensuring a high-quality build. Its compact and lightweight profile make it versatile for various deployment scenarios.

Additional features include port surge protection up to 6 kV, providing durability and safeguarding against unexpected electrical surges. The switch operates in a temperature range of 0°C to 45°C (32°F to 109°F) and can withstand storage temperatures from -40°C to 70°C (-40°F to 158°F). Cloud monitoring capabilities, a reset button for convenience, and port isolation for enhanced security contribute to the switch’s adaptability. Power consumption is minimal, with a power supply of 100V AC to 240V AC, 0.5A.

The RG-ES116G ensures reliability and longevity. It exceeds industry standards with a Mean Time Between Failures (MTBF) of over 200,000 hours and holds certifications such as CE and RoHS.
