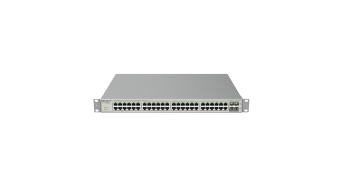

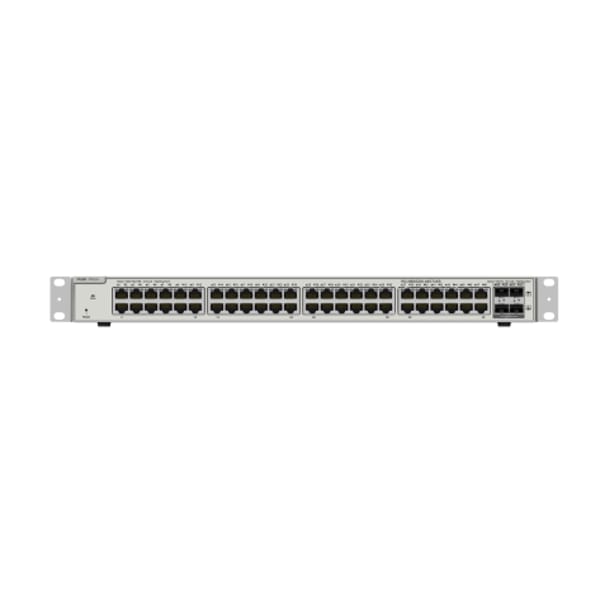

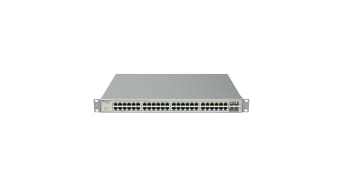

Ruijie RG-NBS5200-48GT4XS Non-PoE Switch

Ruijie RG-NBS5200-48GT4XS Non-PoE Switch

The RG-NBS5200-48GT4XS is a powerful Layer 3 managed non-PoE switch with 48 Gigabit ports and 4 SFP+ uplink ports. Offering enterprise-class quality, 6KV surge protection, and lifetime management on Ruijie Cloud, it ensures high-performance connectivity with advanced security measures. This switch provides robust features for reliable and efficient networking.
SKU: RG-NBS5200-48GT4XS
Brand: Ruijie
Warranty: 1 Year
UPC/EAN: 6971693271074

Product description

The RG-NBS5200-48GT4XS is a high-performance Layer 3 managed non-PoE switch designed to meet the demanding requirements of modern networks. With 48 Gigabit ports and 4 SFP+ uplink ports, this switch provides enterprise-class quality, ensuring reliable and efficient connectivity for a wide range of devices.

A standout feature of this switch is its 6KV surge protection, significantly reducing the risk of port damage. This robust protection mechanism enhances the durability of the switch, making it suitable for deployment in challenging environments where network equipment may be exposed to electrical surges.

Security is a top priority, and the RG-NBS5200-48GT4XS excels in this aspect. Multiple security policies are in place to safeguard your network, providing a secure environment for your data. Whether you're managing a small office network or a large enterprise setup, these security measures help protect against potential threats.

The switch seamlessly integrates with Ruijie Cloud, offering lifetime management capabilities. This means you can conveniently manage and monitor your network at any time from anywhere, providing flexibility and efficiency in network administration.

With a switching capacity of 176 Gbps, a MAC address table supporting up to 16,000 entries, and a fan system with left/right-to-rear airflow, the switch ensures optimal performance and reliability. The Mean Time Between Failures (MTBF) exceeds 200,000 hours, underscoring its reliability in continuous operation.

Featuring Layer 3 capabilities, the switch supports a forwarding rate of 132 Mpps, ensuring swift and efficient data transfer. The maximum VLAN support of 4094 provides flexibility in network segmentation, catering to diverse network requirements.

In terms of software features, the switch supports Ping and Traceroute utilities, ACL entries for access control, Static Routing for efficient data routing, and IP Standard ACL for added security.

Physically, the switch features a flash memory capacity of 256 MB, providing ample space for firmware and configurations. With a power consumption of less than 28W, the switch contributes to energy efficiency in your network infrastructure.

In summary, the RG-NBS5200-48GT4XS is a comprehensive non-PoE switch with advanced features, ensuring high performance, security, and efficient network management. Whether you're setting up a new network or upgrading an existing one, this switch delivers the reliability and functionality required for modern networking demands.

Specification

General

Weight
3.6 kgs
Number of Ports
48
Ports and Slots
48 x 10/100/1000Base-T ports, 4 SFP+ uplink
Warranty
1 Year
UPC/EAN
6971693271074
Package Dimension
57.3 X 40.1 X 14.5 cm
