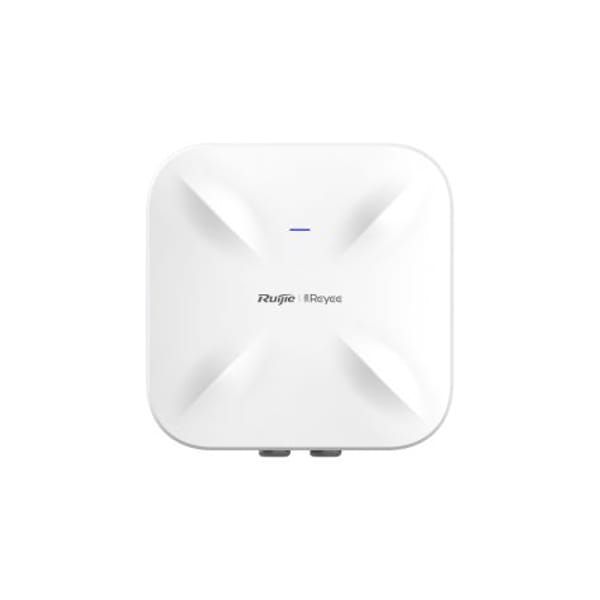

Ruijie RG-RAP6260(G) Outdoor Access Point

Ruijie RG-RAP6260(G) Outdoor Access Point

The RG-RAP6260(G) AX1800 Wi-Fi 6 Outdoor Access Point from Ruijie Reyee is a robust dual-band solution supporting 2.4GHz and 5GHz bands. With IP68 protection and Reyee Mesh support, it thrives in challenging outdoor conditions. Offering speeds up to 1775Mbps, Power over Ethernet, and advanced security features.
SKU: RG-RAP6260(G)
Brand: Ruijie
Warranty: 1 Year
UPC/EAN: 6971693272187

Product description

The RG-RAP6260(G) AX1800 Wi-Fi 6 Dual Band Gigabit Outdoor Access Point by Ruijie Reyee is a cutting-edge wireless product designed for outdoor environments, featuring robust capabilities and advanced technology. With support for 802.3at PoE In power supply, this Access Point (AP) ensures efficient and convenient deployment.

Operating on concurrent 2.4GHz and 5GHz bands, the AP incorporates dual-stream MIMO technology, delivering impressive speeds of 574Mbps at 2.4GHz and 1201Mbps at 5GHz. This results in a total throughput of 1775Mbps per AP, ensuring a high-performance wireless experience.

The RG-RAP6260(G) is equipped with internal antennas (4dBi for 2.4GHz and 6dBi for 5GHz) and supports Reyee Mesh technology, allowing for easy expansion of Wi-Fi coverage in outdoor areas without the hassle of extensive wiring.

Designed with IP68 protection, the outer shell ensures durability in extreme weather conditions, making it suitable for deployment in challenging outdoor environments. The device is capable of operating flawlessly in ultra-cold and humid weather, reducing installation and maintenance complexities.

With a focus on versatility, the RG-RAP6260(G) supports Power over Ethernet remote mode, making it suitable for various sectors, including education, government, medical, finance, and business.

The AP operates on the 802.11a/b/g/n/ac/ax protocols, covering a wide range of wireless standards for compatibility. The dual-stream dual-band setup provides flexibility in network deployment, catering to diverse user requirements.

Featuring a range of modulation schemes and receive sensitivity levels, the AP ensures reliable wireless connectivity across different environments. It supports up to 512 clients, with a recommended number of 100 clients, and offers up to 8 SSIDs with support for SSID hiding.

Security is a priority with support for PSK authentication, static blacklist/whitelist, and WPA/WPA2 data encryption. The AP supports various routing options, including static IP address, DHCP, and PPPoE Dial.

Management and maintenance are streamlined with support for local or remote management using the Ruijie Cloud APP and the Ruijie Noc Cloud platform. The platform management features include automatic RF adjustment, unified configuration, and monitoring.

The installation is flexible, with the AP being pole/wall-mountable, adhering to safety standards (GB4943, IEC 60950-1) and EMC standards (GB9254, EN301 489, EN50155: EN50121). It complies with vibration and radio standards, ensuring reliability in diverse operating conditions.

In summary, the RG-RAP6260(G) AX1800 Access Point by Ruijie Reyee offers a powerful and resilient outdoor wireless solution, combining advanced technology, durability, and versatile management features for a seamless networking experience.

Specification

General

Antenna Type
Omnidirectional Antenna
Weight
1.35 kgs
Wireless Communication Standard
802.11.ax
Frequency Band Class
Dual Band
Connectivity Type
802.11AX Standard (WiFi 6)
UPC/EAN
6971693272187
Max data Rates
1.775Gbps
Package Dimension
43.5 x 38.5 x 18.2 cm
Power Source Included
No
Recommended max number of active devices per AP
512/100
MIMO
2.4 GHz 2x2, 5 GHz 2x2
Number of Ports
2
PoE Input
802.3at PoE
Warranty
1 Year
