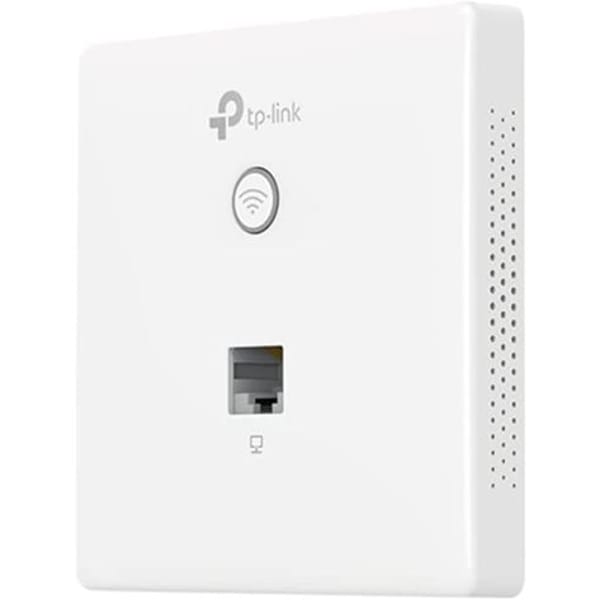

TP-Link EAP115 Wall Plate Wi-Fi Access Point

Introducing the TP-Link EAP115 Wall Plate Wi-Fi Access Point, a versatile networking solution designed to meet the demands of modern connectivity in various environments. This compact and sleek device seamlessly integrates into your existing infrastructure, providing high-speed wireless access, robust security, and convenient management options.

Hardware Features:
The EAP115 Wall Plate Access Point is equipped with two Ethernet ports, offering both uplink and downlink connectivity at 10/100 Mbps. This dual-port design ensures reliable network expansion, making it a suitable choice for locations where multiple Ethernet connections are needed. The access point's power supply is provided through IEEE 802.3af Power over Ethernet (PoE), minimizing cable clutter and simplifying installation. With a low power consumption of 2.8 watts, it's an energy-efficient solution for your network. The compact dimensions (3.4 × 3.4 × 1.2 inches) and an internal 2× 1.8 dBi Omni antenna make it a discreet addition to any wall, while the hardware watchdog enhances device reliability.

Wireless Features:
The EAP115 complies with IEEE 802.11n/g/b wireless standards, operating in the 2.4 GHz frequency band. It offers impressive signal rates, with up to 300 Mbps for 11n devices, 54 Mbps for 11g, and 11 Mbps for 11b, ensuring reliable and efficient wireless connectivity.

Customize your network with features like multiple SSIDs (up to 8 SSIDs), automatic channel assignment, and Quality of Service (QoS) with WMM support to prioritize critical data traffic. Load balancing and rate limiting further optimize network performance, and you can schedule reboots and wireless availability as needed. The EAP115 also provides in-depth statistics based on SSID, AP, and client usage.

Wireless Security:
Robust security features include captive portal authentication, access control, wireless MAC address filtering, and wireless isolation between clients. SSID to VLAN mapping and local LAN port-based VLAN ensure network segmentation and data security. The device supports 802.1X authentication and encryption with 64/128/152-bit WEP, WPA, WPA2-Enterprise, WPA-PSK, and WPA2-PSK, enhancing data protection.

Management and Monitoring:
Managing the EAP115 is a breeze with the Omada App, which provides convenient access and control over your network. For more extensive deployments, centralized management is possible through Omada Hardware Controller (OC300 and OC200) or the Omada Software Controller. Cloud access is available, requiring the use of OC300, OC200, or the Omada Software Controller, ensuring that you can manage your network from anywhere. The device also supports email alerts and allows you to control LED settings and manage access with MAC address control. You can monitor and maintain your network with SNMP support and local/remote syslog, while SSH and web-based management (HTTP/HTTPS) add to your management options. L3 management, multi-site management, and management VLAN capabilities provide flexibility and scalability.

Other Features:
The EAP115 is CE and RoHS certified, meeting safety and environmental standards. The package includes the EAP115 Wall Plate Access Point, an installation guide, and mounting screws. System requirements are compatible with Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, and Linux operating systems. The device operates in a temperature range of 0–40 ℃ with humidity levels from 10–90% RH.

In summary, the TP-Link EAP115 Wall Plate Wi-Fi Access Point offers a comprehensive solution for modern networking needs. With its dual Ethernet ports, PoE support, powerful wireless features, and robust security, it's an excellent choice for organizations of all sizes looking to enhance their network connectivity and reliability.
