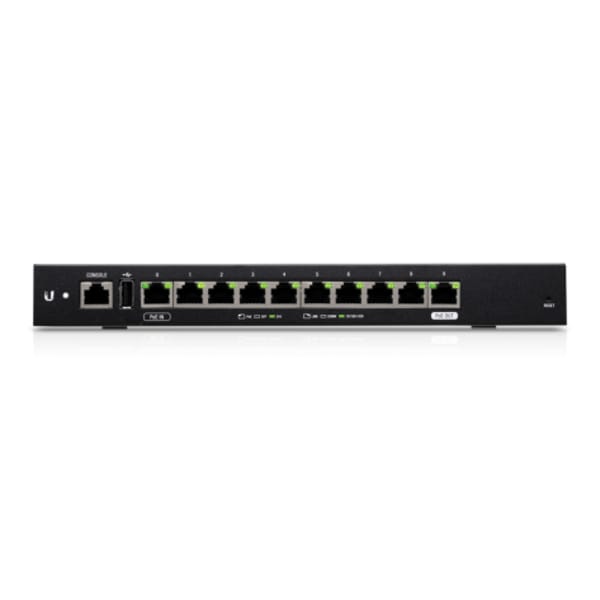

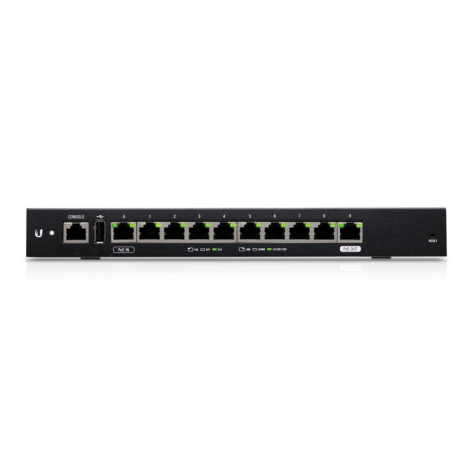

Ubiquiti EdgeRouter 10X Wired Router (ER-10X)

The Ubiquiti EdgeRouter 10X (ER-10X) is a compact, cost-effective solution that offers robust routing performance suitable for small businesses, advanced home networks, and edge deployments. It features ten Gigabit RJ45 ports, providing high-speed connectivity while incorporating a Layer 2 switch for added network flexibility. Designed to handle complex routing tasks with ease, the ER-10X runs on a dual-core 880 MHz MIPS1004Kc processor, 512 MB of DDR3 RAM, and 512 MB of NAND flash memory, delivering reliable throughput and responsive network behavior.

This router supports 24V passive PoE input on port 0 and PoE passthrough on port 9, which simplifies deployments by reducing the need for additional power sources. With passive PoE capabilities, users can power downstream devices like wireless access points or surveillance cameras directly through the network cable. Its power consumption remains low at just 8 watts (excluding PoE output), making it energy-efficient for always-on environments.

Installation and setup are user-friendly, with the device offering both wall and optional rack mounting via the ER-RMKIT accessory. Its compact footprint and lightweight build make it an excellent choice for space-conscious networking setups. With a forwarding capability of 260,000 packets per second at 64 bytes and line-rate performance for larger packet sizes, the ER-10X meets the demands of bandwidth-heavy applications and complex routing configurations.

The EdgeRouter 10X is managed using Ubiquiti’s EdgeOS platform, a powerful yet intuitive interface that gives network administrators granular control over traffic, firewall settings, VPN configurations, DHCP, QoS, and more. This level of flexibility makes it ideal for users who require advanced networking features without the complexity of enterprise-grade systems. Additionally, it is compatible with UNMS (now UISP), Ubiquiti’s centralized management system, allowing remote monitoring and administration from a single dashboard.

The ER-10X is built for durability, with an operating temperature range of -10 to 45°C and humidity tolerance from 10% to 90% noncondensing. Its metal chassis offers good protection against dust and minor physical impact. This router is ideal for applications in SOHO networks, ISP edge environments, or any scenario that demands reliable Layer 3 performance in a cost-conscious form factor.

Whether used as a central router for a small office or a branch node in a larger network, the EdgeRouter 10X delivers strong performance, excellent port density, and solid management capabilities in a compact and efficient package. It empowers administrators with the control and reliability they need to maintain secure and efficient network operations.
