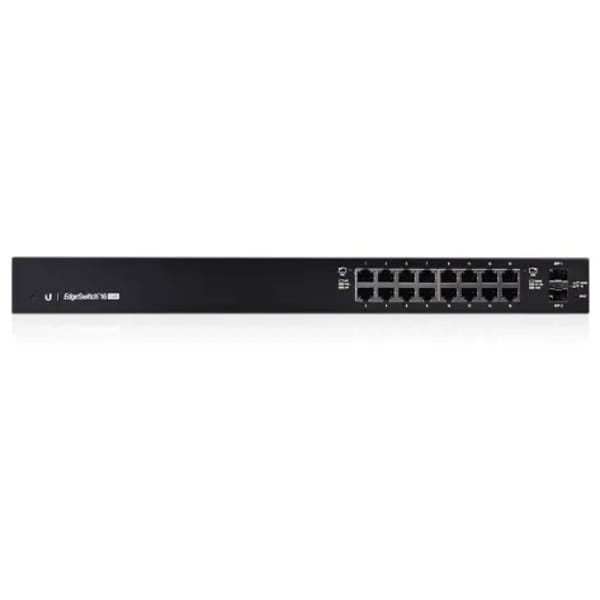

Ubiquiti EdgeSwitch 16-Port 150W PoE Switch (ES-16-150W)

The Ubiquiti EdgeSwitch 16-Port PoE Switch (ES-16-150W) is a robust and feature-rich managed switch designed to deliver reliable network performance along with flexible Power over Ethernet (PoE) capabilities. As part of Ubiquiti’s EdgeMAX product line, this switch caters to small and medium-sized business networks, surveillance systems, and wireless access point deployments that require intelligent switching and centralized power delivery. With a combination of Gigabit Ethernet connectivity, high PoE output, and advanced management functionality, the ES-16-150W is well-equipped to serve as the backbone of modern LAN infrastructure.

The switch features a total of 16 Gigabit RJ45 ports, providing high-speed data transmission across wired networks. All 16 ports support IEEE 802.3af/at PoE+ as well as 24V passive PoE, offering versatile power delivery to a wide range of devices including IP cameras, VoIP phones, UniFi access points, and airMAX radios. In addition to the RJ45 ports, the switch includes two SFP ports for fiber uplinks, allowing for seamless integration with high-bandwidth backhaul or core networking segments. This port configuration makes the ES-16-150W ideal for extending networks over longer distances or integrating with data center infrastructure.

With a total switching capacity of 18 Gbps and a non-blocking throughput of 9 Gbps, the ES-16-150W ensures consistent performance and minimal latency even under heavy traffic loads. The device is powered by a 150W internal power supply, sufficient to handle multiple PoE-powered devices without the need for external injectors. Each PoE port can deliver up to 34.2W, allowing the switch to simultaneously power several high-consumption devices with ease.

The ES-16-150W runs on Ubiquiti’s EdgeSwitch firmware, which provides a comprehensive and intuitive interface for network configuration and monitoring. Network administrators can take advantage of advanced Layer 2 switching features, including VLAN support, port mirroring, link aggregation, and Spanning Tree Protocol. In addition, basic Layer 3 features such as static routing and DHCP relay are also supported, offering enhanced flexibility for more complex networking environments.

Built for durability and efficiency, the switch is housed in a 1U rack-mountable metal enclosure and includes an integrated cooling fan system that balances thermal management with quiet operation. This makes the ES-16-150W suitable for installation in office networks, equipment rooms, or surveillance hubs where continuous uptime and stable performance are critical.

In summary, the Ubiquiti EdgeSwitch 16-Port PoE Switch (ES-16-150W) combines intelligent switching, high-power PoE, and seamless fiber connectivity in one compact unit. It is an ideal choice for businesses and integrators seeking a reliable and scalable solution for powering and managing network infrastructure.
