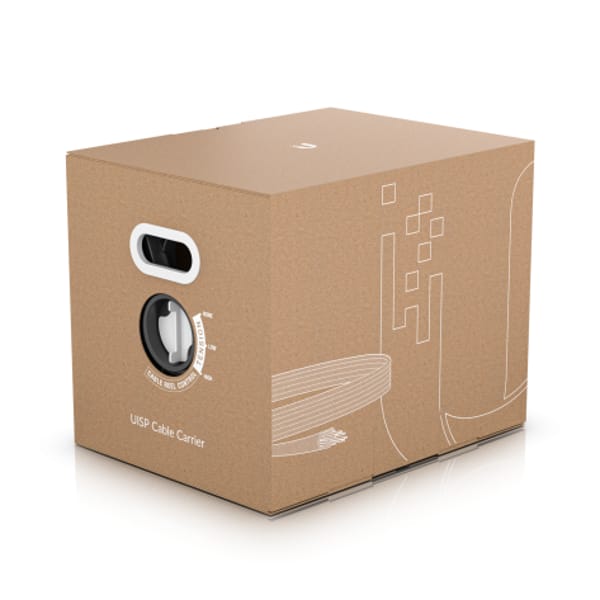

Ubiquiti UISP-Cable-Carrier Cat5E Ethernet Cable

Ubiquiti UISP-Cable-Carrier Cat5E Ethernet Cable

UISP-Cable-Carrier: CAT5e Shielded Ethernet Cable. Supports 1 Gbps, solid copper conductor, robust shielding, and complies with industry standards. High-speed, reliable networking.
SKU: UISP-Cable-Carrier
Brand: Ubiquiti
Warranty: 1 Year
UPC/EAN: 810354021336

Product description

Introducing the UISP-Cable-Carrier, a high-quality and shielded CAT5e Ethernet cable engineered to deliver exceptional performance and reliability in networking applications. This 305-meter (1000-foot) cable, presented in a professional black color, is designed to meet the rigorous demands of modern data and communication networks.

With support for Ethernet connections of up to 1 Gbps, the UISP-Cable-Carrier ensures blazing-fast data transfer speeds, making it an excellent choice for a wide range of networking scenarios, from small home networks to large-scale corporate installations.

At the core of this cable is a robust 24 AWG solid bare copper conductor with a diameter of 0.500 ± 0.005 mm. This premium conductor offers superior conductivity and signal integrity, guaranteeing that your data flows smoothly and reliably.

To minimize electromagnetic interference and signal degradation, the cable boasts a shielding system that includes a thick layer of aluminum foil with an extent of 20 mm. This shielding provides a secure and interference-free network connection, making it ideal for critical applications.

The UISP-Cable-Carrier also features advanced anti-crosstalk technology. Its Low-Density Polyethylene (LDPE) anti-crosstalk divider, measuring 4.2*0.3 mm, effectively isolates the twisted pairs within the cable, significantly reducing crosstalk and enhancing signal quality.

For added protection against external interference, this cable incorporates a secondary shield in the form of a braid with a remarkable density of 95%. This secondary shielding layer ensures your network remains secure and stable.

The cable is further fortified with solid polyethylene insulation, with an average thickness of 0.295 mm and a minimum thickness of 0.29 mm. This insulation safeguards the delicate copper conductors, ensuring their durability and longevity.

The UISP-Cable-Carrier is designed to operate in a wide range of environmental conditions. It can withstand storage temperatures ranging from -30 to 75°C (-22 to 167°F), installation temperatures between -20 to 60°C (-4 to 140°F), and operating temperatures spanning from -40 to 80°C (-40 to 176°F).

Compliance with industry standards is a hallmark of the UISP-Cable-Carrier. It adheres to ANSI/TIA-568-C.2 (2009) and ISO/IEC 11801 (Edition 2.2), ensuring seamless compatibility and reliable performance within your network infrastructure.

For easy installation, a convenient rip cord is included, making setup hassle-free. The cable's robust and durable polyethylene jacket, with an average thickness of 0.52 mm and a minimum of 0.46 mm, provides ample protection for the internal components.

The UISP-Cable-Carrier is the ideal choice for a wide range of networking needs, from data centers and office networks to home entertainment systems. With its high-quality construction, adherence to industry standards, and outstanding performance, it ensures the speed and reliability you require for your networking demands.



Specification

General

Weight
15.35 kgs
UPC/EAN
810354021336
Warranty
1 Year
Package Dimension
43 x 35 x 35 cm
Power Source Included
No
