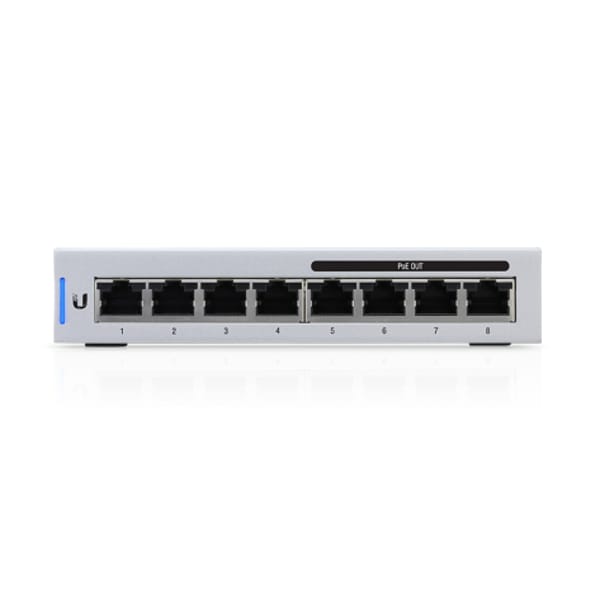

Ubiquiti UniFi 8 PoE Gen1 Switch (US-8-60W)

Ubiquiti UniFi 8 PoE Gen1 Switch (US-8-60W)

Upgrade your network with the US-8-60W 8 PoE switch, featuring 4 GbE PoE ports, 4 GbE ports, and 48W of total PoE power. Silent, fanless design ideal for quiet environments.
SKU: US-8-60W
Brand: Ubiquiti
Warranty: 1 Year
UPC/EAN: 0810354026188

Product description

Upgrade your network with the US-8-60W 8 PoE (Gen1) switch, a versatile and compact solution designed to meet your PoE and networking needs. With a silent, fanless design, it's the perfect fit for noise-sensitive environments.

Featuring 8 Gigabit Ethernet RJ45 ports, this switch offers high-speed connectivity for your devices. Among these ports, 4 are equipped with Power over Ethernet (PoE) capabilities, providing power and data connectivity to PoE-enabled devices such as IP cameras, VoIP phones, and access points. With a total PoE power availability of 48W, you can ensure that your devices remain powered and connected.

The US-8-60W is engineered to deliver efficient and reliable performance. It boasts a total non-blocking throughput of 8 Gbps and a switching capacity of 16 Gbps, ensuring that your data flows smoothly without bottlenecks. With a forwarding rate of 11.9 Mpps, it can handle data-intensive tasks with ease.

For power, the switch utilizes a 48V DC input with a maximum current of 2A. It comes with an external AC/DC adapter that supports a wide voltage range (44โ€“57V DC). The switch's maximum power consumption is 12W, excluding PoE output. Each PoE port can deliver up to 15.4W of power.

The US-8-60W is built to withstand environmental challenges, with ESD/EMP protection of ยฑ 24kV for both air and contact. It operates efficiently in temperatures ranging from -5 to 45ยฐC (23 to 113ยฐF) and maintains optimal performance in humid conditions.

With an Ethernet In-Band management interface and SGCC steel enclosure, this switch combines ease of use with durability.

Elevate your network with the US-8-60W 8 PoE switch, providing reliable PoE capabilities and high-speed connectivity in a silent, fanless design. Ideal for small offices, home setups, and noise-sensitive locations.



Specification

General

Weight
1 kgs
Number of Ports
8
Ports and Slots
8 x RJ-45 ports
Product Dimensions
15.8 x 10.95 x 4.07
Warranty
1 Year
UPC/EAN
0810354026188
Package Dimension
23 x 15 x 10 cm
