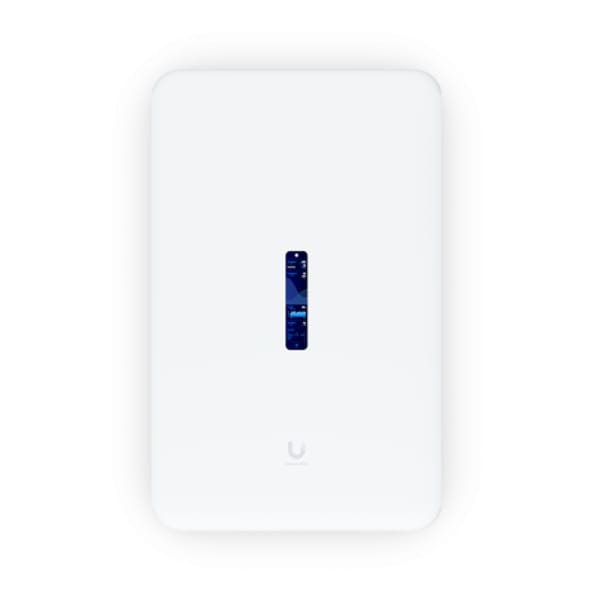

Ubiquiti UniFi Dream Wall Access Point (UDW)

Introducing the Unifi Dream Wall: Unleash the Power of Ultimate Network Gateway

Advanced Hardware, Rugged Build

With dimensions of 549 x 342 x 62 mm (21.6 x 13.5 x 2.4") and weighing 8.6 kg (19 lb), the Unifi Dream Wall is a robust, long-lasting solution crafted from polycarbonate, galvanized steel, and aluminum alloy. Its stainless steel mount materials guarantee durability.

Processing Prowess and Storage

Powered by a quad-core ARM Cortex-A57 processor clocked at 1.7 GHz and featuring 4 GB DDR4 RAM, 16 GB eMMC, and an integrated 128 GB SSD, this device ensures lightning-fast performance. It even comes with a pre-installed 512 GB microSD card for additional storage capacity.

Versatile Networking and PoE Support

Boasting an array of ports, including 17 LAN (GbE RJ45), 1 WAN (2.5 GbE RJ45), 1 LAN (10G SFP+), and 1 WAN (10G SFP+), the Unifi Dream Wall offers extensive connectivity options. Plus, it supports PoE, PoE+, and PoE++.

Display and User Interface

Navigate effortlessly with the 4.7" touchscreen LCM display and a convenient factory reset button. The included wall mount simplifies installation.

Impressive Performance

Enjoy top-tier wireless connectivity with 2.4 GHz and 5 GHz support, MIMO technology (2x2 for 2.4 GHz and 4x4 for 5 GHz), and blazing throughput rates of up to 2.4 Gbps.

Robust Security and Features

Benefit from advanced security features like application-aware firewall rules, IPS/IDS threat detection, content filtering, and VLAN-based traffic segmentation. Reliable internet access is ensured with redundant WAN, LTE Backup, and SD-WAN.

Seamless Integration

Supporting a range of WiFi standards (802.11a/b/g, WiFi 4/WiFi 5/WiFi 6) and advanced security protocols, the Unifi Dream Wall effortlessly handles over 300 concurrent clients.

Comprehensive LED Indicators

Stay informed with white link/activity indicators for Ethernet and SFP+ ports, blue indicating PSU readiness, and amber signaling failure alerts.

Supported Data Rates

Experience impressive data rates across various WiFi standards: 802.11a, 802.11b, 802.11g, 802.11n (WiFi 4), 802.11ac (WiFi 5), and 802.11ax (WiFi 6).

Elevate your network to new heights with the Unifi Dream Wall. Whether managing a demanding enterprise or a data-intensive environment, this all-in-one gateway offers the power, reliability, and features needed. Upgrade your network infrastructure today.
