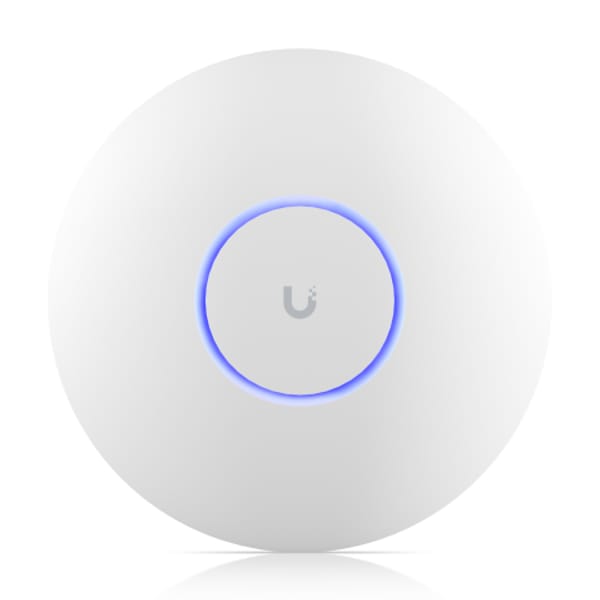

Ubiquiti UniFi U7-Pro Access Point

Introducing the U7-Pro, a cutting-edge addition to the UniFi family that redefines wireless connectivity standards. Designed with precision and innovation, the U7-Pro is a compact and versatile access point that elevates network performance and reliability.

With a sleek form factor measuring 206 x 46 mm and weighing 680 g, the U7-Pro combines robust materials such as polycarbonate and metal for enhanced durability. The mounting materials, including stainless steel (SUS304) and galvanized steel (SGCC), contribute to its overall stability, making it an ideal choice for modern networking environments.

Equipped with a single 1/2.5 GbE RJ45 port for networking and an Ethernet port for management, the U7-Pro ensures seamless connectivity and efficient device management. Powered by PoE+, this access point is optimized for UniFi PoE switches, supporting a voltage range of 44—57V DC with a maximum power consumption of 21W, striking a balance between performance and energy efficiency.

The U7-Pro operates across 2.4 GHz, 5 GHz, and 6 GHz frequencies, delivering exceptional wireless performance. With 2 x 2 MIMO technology and impressive antenna gains of 4 dBi, 6 dBi, and 5.8 dBi for 2.4 GHz, 5 GHz, and 6 GHz respectively, it ensures reliable and high-speed data transmission for a seamless user experience.

Featuring LEDs in white and blue, the U7-Pro provides clear visual indications, while the factory reset button simplifies device management. Operating in temperatures ranging from -30 to 60°C (-22 to 140°F) and supporting humidity levels from 5 to 95% noncondensing, this access point is designed to thrive in diverse environmental conditions. Certified by CE, FCC, and IC, it meets stringent standards for quality and compliance.

On the software side, the U7-Pro supports WiFi standards including 802.11a/b/g/n/ac/ax/be, ensuring compatibility with a wide range of devices. Advanced features such as WPA-PSK, WPA-Enterprise, VLAN support, and per-user rate limiting contribute to a secure and efficient network environment.

With seamless integration into the UniFi ecosystem, supporting UniFi Network version 8.0.26 and later, as well as UniFi OS version 3.2 and later, the U7-Pro is the ultimate solution for modern connectivity needs. Elevate your network with the U7-Pro and experience unparalleled wireless performance and reliability.
