Ubiquiti UniFi UAP-AC-M-5 Access Point (Pack of 5)

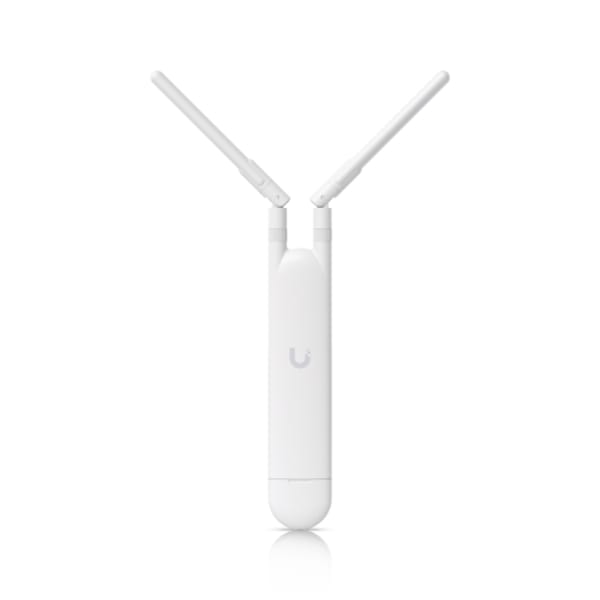

Introducing the UniFi AC Mesh, a versatile and high-performance access point designed to deliver reliable Wi-Fi connectivity in challenging outdoor environments. This robust access point combines a rugged design with advanced features, making it a top choice for outdoor deployments.

Hardware Features:
The UniFi AC Mesh features a single Gigabit Ethernet port for network connectivity and management. It can be powered using a 24V passive PoE or an alternative 802.3af PoE source, giving you flexibility in powering options. It also supports a wide voltage range of 44-57V DC, ensuring reliability even in variable power conditions. With a maximum power consumption of 8.5W, it efficiently manages power usage. The device's MIMO configuration includes 2x2 for both 2.4 GHz and 5 GHz bands, providing high throughput rates of 300 Mbps and 867 Mbps, respectively.

The UniFi AC Mesh is built to withstand outdoor conditions with a rugged design. It comes with a robust mounting kit for wall, pole, or fast-mount installation, ensuring a secure and versatile setup. Operating temperature ranges from -30 to 70°C, and it can handle humidity levels from 5% to 95% without condensation. The device is certified to meet CE, FCC, IC, and UKCA standards, ensuring compliance and safety.

Software Features:
This access point supports a wide range of Wi-Fi standards, including 802.11a/b/g/n/ac, ensuring compatibility with various devices. Security is a priority, with support for WEP, WPA-PSK, and WPA-Enterprise (WPA/WPA2, TKIP/AES) encryption protocols.

You have the flexibility to create up to four BSSIDs per radio and segment your network using VLAN capabilities. Advanced Quality of Service (QoS) with per-user rate limiting ensures that critical data traffic receives the priority it deserves. Guest traffic isolation and power-saving features are also supported, providing a comprehensive feature set for your network management.

With a capacity to handle 250 or more concurrent clients, the UniFi AC Mesh is well-prepared for high-density outdoor deployments. Supported data rates encompass 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ac standards, offering compatibility with a wide array of devices and applications.

In conclusion, the UniFi AC Mesh stands as a robust outdoor access point, capable of delivering high-performance Wi-Fi connectivity while enduring challenging outdoor conditions. Its rugged design, flexible power options, and advanced features make it an ideal choice for outdoor deployments, whether you're extending your network coverage in a park, a campus, or any outdoor setting. Trust in UniFi's quality and reliability to keep your wireless network running seamlessly.
