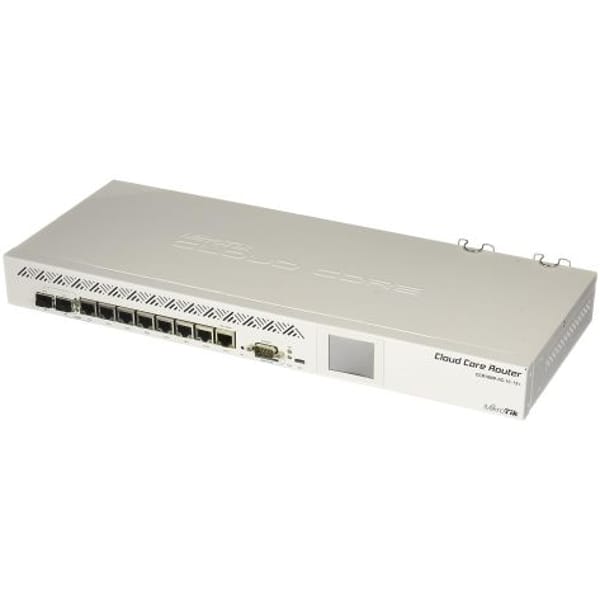

MikroTik CCR1009-7G-1C-1S+ Router

MikroTik CCR1009-7G-1C-1S+ Router

Meet the CCR1009-7G-1C-1S+ routerโ€”a robust and versatile solution for your network needs. With fast connectivity, efficient performance, and user-friendly features, it's an ideal choice for reliable and hassle-free networking in diverse environments.
SKU: CCR1009-7G-1C-1S+
Brand: MikroTik
Warranty: 1 Year
UPC/EAN: 4752224001849

Product description

Meet the CCR1009-7G-1C-1S+, a powerhouse router designed for superior performance and versatility. Featuring the TILE architecture and a TLR4-00980 CPU with 9 cores at 1.2 GHz, this router delivers unmatched processing power for demanding networking tasks.

With a RouterOS license of level 6, the operating system provides a robust and customizable platform. Boasting 2 GB of RAM and 128 MB of NAND storage, the CCR1009-7G-1C-1S+ ensures efficient multitasking and quick access to critical data.

Designed for reliability, this router includes IPsec hardware acceleration and boasts an impressive MTBF of approximately 200,000 hours at 25ยฐC. Tested for ambient temperatures ranging from -20ยฐC to 60ยฐC, it is a resilient choice for diverse environments.

Powering options are flexible, offering two AC inputs with a range of 100-240V and one DC input supporting Passive PoE with a voltage range of 15-57V. The maximum power consumption is 39W, ensuring energy efficiency. The cooling system consists of two fans, maintaining optimal operating temperatures.

Connectivity is a highlight, featuring 7 Gigabit Ethernet ports, 1 Ethernet Combo port, and 1 SFP+ port for fiber connections. A SIM slot for a Smart card (Mini SIM), a microSD card slot, and a USB port add versatility for storage and expansion.

Monitoring and control features include CPU temperature, current, PCB temperature, and voltage monitors, along with a beeper for alerts. The router holds certifications including CE, EAC, and ROHS, ensuring compliance with international standards.

With an IP20 rating, the CCR1009-7G-1C-1S+ is well-protected against dust and solid objects. The included microUSB type AB port with USB Power Reset functionality adds convenience for external device connectivity.

Whether you're managing a complex network or need a reliable solution for your business, the CCR1009-7G-1C-1S+ stands out with its powerful performance, diverse connectivity options, and robust design, making it an ideal choice for demanding networking scenarios.

Specification

General

Weight
2.76 kgs
Number of Ports
8
UPC/EAN
4752224001849
Data Throughput
Up to 1 Gbps
Form Factor
Rack Mount
Package Dimension
47 x 27 x 6 cm
Port Speed
1 Gbps
Product Dimensions
47 X 27 X 5.5 cms
Warranty
1 Year
