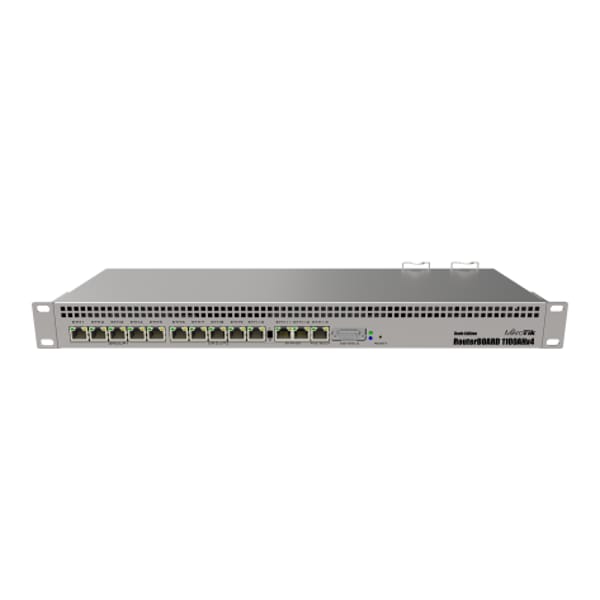

MikroTik RB1100AHx4 Dude Edition Ethernet Router

Introducing the RB1100Dx4, a robust and high-performance router designed to meet the demands of modern networking. With its cutting-edge features and advanced technology, this router is perfect for both home and professional use.

At the heart of the RB1100Dx4 lies an ARM 32bit architecture powered by the AL21400 CPU. Boasting 4 CPU cores with a nominal frequency of 1.4 GHz, this router delivers exceptional processing power for seamless data handling and efficient network management. The integrated RTL8367 switch chip model ensures swift and reliable data transfers across the network.

Equipped with a RouterOS license of level 6, the operating system offers a versatile and user-friendly interface, allowing users to customize and optimize their network settings. With 1 GB of RAM and 128 MB of NAND storage, the RB1100Dx4 provides ample memory and storage capacity for smooth multitasking and quick access to essential data.

This router is engineered for durability, featuring a passive cooling system that ensures efficient heat dissipation. With an MTBF of approximately 200,000 hours at 25°C, users can rely on the RB1100Dx4 for consistent and reliable performance. The IPsec hardware acceleration enhances data security, making it an ideal choice for businesses and organizations with sensitive information.

In terms of powering options, the RB1100Dx4 offers flexibility with two AC inputs and two DC inputs, including PoE-IN functionality. The 2-pin terminal input supports a voltage range of -48, 20-57 V, while the maximum power consumption is 33 W.

The Ethernet capabilities of the RB1100Dx4 are impressive, featuring 13 Gigabit Ethernet ports for high-speed connectivity. Additionally, the router includes 2 SATA3 ports, 2 M.2 slots, and a microSD card slot, offering various options for storage expansion and connectivity.

For monitoring and control, the RB1100Dx4 comes equipped with current, PCB temperature, and voltage monitors, along with a beeper for audible alerts. It also includes a comprehensive set of certifications, including CE, EAC, and ROHS, ensuring compliance with international standards.

Included with the RB1100Dx4 is a 60GB M.2 SSD for extended storage, providing users with the convenience of additional space for data storage and backups. With its powerful features, reliable performance, and extensive certifications, the RB1100Dx4 is a top-tier choice for networking enthusiasts and professionals alike.
