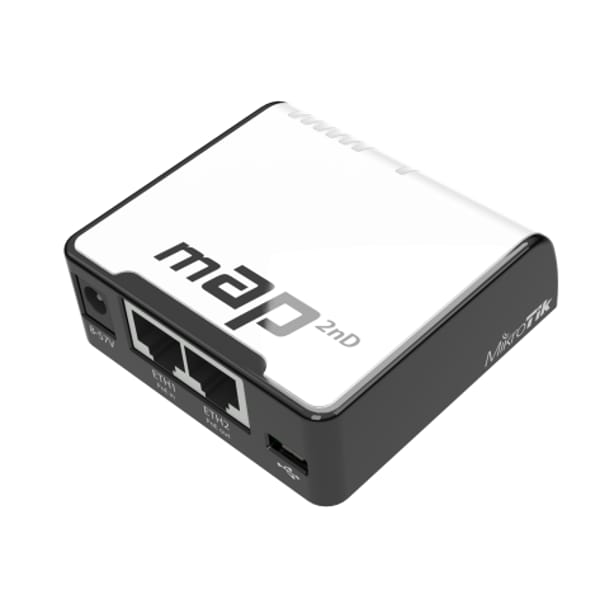

MikroTik RBmAP2nD - mAP Access Point

Introducing the MikroTik RBmAP2nD (mAP), a powerful and versatile wireless access point designed to enhance your network connectivity. With a MIPSBE architecture and a robust QCA9531 CPU clocked at 650 MHz, this device ensures seamless data processing for optimal performance. Whether you're in a small office or at home, the RBmAP2nD (mAP) provides a reliable networking solution.

Equipped with 64 MB of RAM and 16 MB of FLASH storage, the RBmAP2nD (mAP) runs on RouterOS, a feature-rich operating system that empowers users with advanced configuration options and security features. With a RouterOS license level of 4, you have access to a comprehensive set of capabilities, making it an ideal choice for diverse networking requirements.

In the realm of wireless connectivity, the RBmAP2nD (mAP) operates on the 2.4 GHz band, supporting the 802.11b/g/n standards. With a maximum data rate of 300 Mbit/s and two chains for robust wireless communication, it ensures reliable and high-speed connectivity. The QCA9531 wireless chip model and Wi-Fi 4 (802.11n) generation make the RBmAP2nD (mAP) a dependable choice for various wireless applications.

For wired connections, this device features two 10/100 Ethernet ports, providing flexibility for wired network integration. Additionally, it offers a microUSB type AB port, with USB Power Reset functionality, enhancing convenience and ease of use.

Powering the RBmAP2nD (mAP) is convenient and flexible, with options for MicroUSB input (5V) and three DC inputs (DC jack, PoE-IN, MicroUSB). Supporting 802.3af/at Power over Ethernet (PoE) standards, this device efficiently draws power from a 12-57 V input range, ensuring compatibility with various power sources.

The RBmAP2nD (mAP) goes beyond standard access points with passive PoE-out capabilities on Ether2, enabling the powering of additional devices. With a maximum total out of 0.5 A, it provides a convenient solution for expanding your network.

Certified by FCC and IC, the RBmAP2nD (mAP) adheres to industry standards, ensuring reliability and compliance. Additionally, it incorporates PCB temperature and voltage monitoring features, contributing to the overall robustness and stability of the device.

In summary, the MikroTik RBmAP2nD (mAP) is a feature-rich wireless access point designed for versatility and performance. From its powerful hardware specifications to its comprehensive certification and monitoring features, the RBmAP2nD (mAP) stands out as a reliable choice for expanding and enhancing your network infrastructure.
