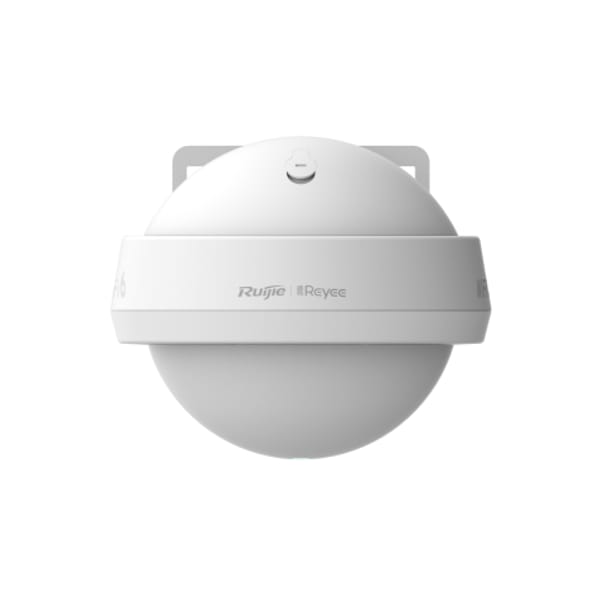

Ruijie RG-RAP6262 Outdoor Access Point

Ruijie RG-RAP6262 Outdoor Access Point

Experience outdoor Wi-Fi excellence with the RG-RAP6262 Reyee AX3000 Access Point. Its UFO-style design merges performance with aesthetics, delivering Wi-Fi 6 speeds, long-distance deployment, and IP68-rated durability. Benefit from Reyee Mesh technology for seamless expansion and enjoy easy installation with the rack-separated design. Manage your network effortlessly through cloud management.
SKU: RG-RAP6262
Brand: Ruijie
Warranty: 1 Year
UPC/EAN: 6971693274075

Product description

Elevate your outdoor connectivity with the RG-RAP6262 Reyee AX3000 High-performance Outdoor Omni-directional Access Point, a perfect blend of high performance and full coverage designed in a distinctive UFO-style. Explore the world of Wi-Fi 6 ultra-high-speed, long-distance deployment capabilities, and resilient adaptability to harsh environments with an IP68 rating.

UFO-Style Design: The RG-RAP6262 stands out with its unique UFO-style design, combining aesthetics with high-performance functionality. Whether deployed in parks, campuses, or outdoor venues, it adds an artistic touch to your outdoor network infrastructure.

Wi-Fi 6 Ultra-High-Speed: Harness the power of Wi-Fi 6 with the RG-RAP6262, delivering ultra-high-speed performance. The revolutionary combination of OFDMA, 1024QAM, and the 802.11ax standard ensures a remarkable wireless throughput of up to 2.976 Gbps.

Long-Distance Deployment: Enjoy the flexibility of long-distance deployment with optical ports. The RG-RAP6262 supports up to 20 km transmission from a data center using single-mode fibers, catering to diverse outdoor network requirements.

IP68 Rating, Harsh Environment Adaptability: Engineered to withstand challenging conditions, the RG-RAP6262 boasts an IP68 rating, making it completely sealed against water, dust, and moisture. It is also flame-retardant and equipped with wind erosion protection, ensuring durability in a wide temperature range.

Omni-directional Coverage with Wide Range: Benefit from omni-directional coverage provided by five built-in high-gain antennas. Experience a radius of 100 meters at 2.4 GHz and an impressive 300 meters at 5 GHz, ensuring extensive and reliable network coverage.

Easily Adding Extra Outdoor Wi-Fi with Reyee Mesh: Simplify network expansion with Reyee Mesh technology. The RG-RAP6262 seamlessly integrates with Reyee Mesh, eliminating the need for cumbersome cabling. Expand your outdoor Wi-Fi effortlessly.

Easy Installation with Rack-Separated Mounting Design: Installing access points at elevated locations is hassle-free with the rack-separated mounting design. The iron hoop replaces plastic cable ties, ensuring stability and ease of installation.

Cloud Management: Manage your outdoor network with ease through cloud management. Enjoy remote monitoring, Wi-Fi management, and cloud portal authentication, all accessible via the Reyee Cloud platform.

Certifications and Power Supply: The RG-RAP6262 holds CE and ROHS certifications, guaranteeing compliance with international safety and environmental standards. It supports power supply through 802.3at PoE and 12V/2A DC.

Operating Temperature and Power Consumption: The access point operates efficiently in a wide temperature range from -30ยฐC to +65ยฐC. With a power consumption of โ‰ค 24W, it ensures energy-efficient performance.

Specification

General

Antenna Type
Omnidirectional Antenna
Weight
1.4 kgs
Wireless Communication Standard
802.11.ax
Frequency Band Class
Dual Band
Connectivity Type
802.11ax (Wi-Fi 6)
UPC/EAN
6971693274075
Max data Rates
2.97Gbps
Package Dimension
47.5 x 30.5 x 27 cm
Power Source Included
No
Recommended max number of active devices per AP
512/110
MIMO
2x2 @2.4 GHz, 2x2 @5 GHz
Number of Ports
2
PoE Input
802.3at PoE
Ports and Slots
1 x 10/100/1000 Base-T, 1 x 1GBase-X SFP
Power Source
802.3at PoE, 12V/2A DC
Warranty
1 Year
