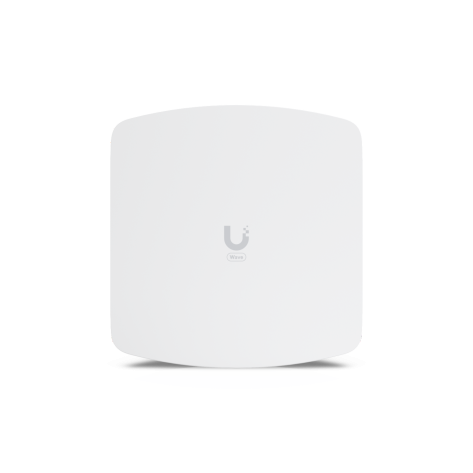

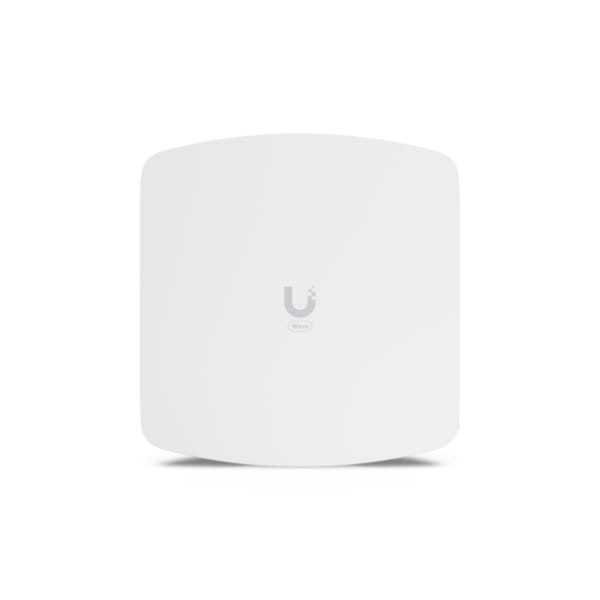

Ubiquiti UISP Wave-AP Access Point

Introducing the Ubiquiti Wave AP, a powerful and versatile wireless access point designed to deliver exceptional performance in demanding outdoor environments. With a robust set of features and advanced technology, this access point is engineered to meet the unique connectivity needs of a wide range of applications.

Hardware Features:
The Ubiquiti Wave AP boasts a formidable hardware setup. It features a Quad ARM® Cortex®-A53 processor with four cores operating at 1.4 GHz, ensuring high-speed data processing. Supported by DDR3L 512 MB of memory, this access point can handle the demands of modern networks with ease.

Network connectivity is facilitated through a 2.5GbE RJ45 port (100/1000/2500) and a 10G SFP+ port (1/10), with the 2.5GbE port active when the SFP+ port is down. The power method is versatile, supporting both passive PoE 4-pairs (1, 2+; 3, 6-) and passive PoE 2-pairs (4, 5+; 7, 8-) for a voltage range of 44–54V DC. It's powered by a 48V DC, 0.65A 2.5GbE PoE adapter, which is included.

Equipped with GPS functionality, the Ubiquiti Wave AP also features a factory reset button and LED indicators for power, Ethernet, and GPS status. The access point is built to endure extreme environmental conditions, with an operating temperature range of -40 to 60°C and support for humidity levels of 5% to 95% without condensation. Certified to meet FCC, IC, and CE standards, it complies with safety and regulatory requirements.

Software Features:
Operating in PtMP (Point-to-MultiPoint) access point mode, the Ubiquiti Wave AP supports Ubiquiti's Wave technology. It offers a range of services, including UISP (Ubiquiti's Network Management System), a ping watchdog, NTP (Network Time Protocol) client, and SNMP (Simple Network Management Protocol) for effective network management. The access point comes with an array of useful tools, such as antenna alignment, discovery utility, ping, trace route, and speed test, to aid in network configuration and troubleshooting.

In network bridge mode, the Ubiquiti Wave AP seamlessly integrates into your existing network infrastructure. It operates with UISP versions 1.5.7 and later, offering seamless integration with Ubiquiti's network management system.

System Features:

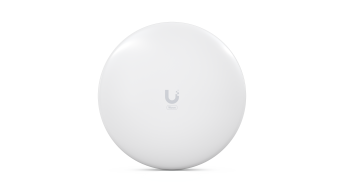

The Ubiquiti Wave AP achieves a remarkable total throughput of 5.4 Gbps (2.7 Gbps in each direction), ensuring robust data delivery. It is designed to accommodate up to 15 supported clients and offers a maximum range of up to 8 km when connecting to a Wave Long-Range device or up to 5 km when connecting to a Wave Nano device.

For added security, the access point employs WPA2-PSK (AES) encryption to safeguard your network.

RF Features:
Operating in the 57–71 GHz frequency range (depending on the regulatory region), the Ubiquiti Wave AP offers channel bandwidths of 2160 and 1080 MHz. It supports a variety of modulation schemes, including 16QAM, QPSK, and others, ensuring efficient data transmission.

With a high antenna gain of 24 dBi and dual-linear polarization, the access point delivers a reliable signal. Its beamwidth, both in azimuth and elevation, provides solid coverage, and the electric downtilt is set at 0°, ensuring optimal performance.

Back-Up RF Features:
In addition to the primary RF features, the Ubiquiti Wave AP also operates on the 802.11ax (WiFi 6) standard in the 5 GHz band. It supports various frequency ranges, depending on the regulatory region, and channel bandwidths of 20, 40, and 80 MHz.

The access point uses a range of modulation schemes, from BPSK to 1024QAM, to optimize data transmission. With a 12 dBi antenna gain and dual-linear polarization, it delivers efficient connectivity. The beamwidth is 35° in azimuth and 60° in elevation, with an electric downtilt of 0°.

LED Features:
The LED indicators on the Ubiquiti Wave AP provide essential status information. The power LED displays different colors to indicate various states of operation. The Ethernet LED flashes when Ethernet traffic is detected, and the GPS LED signals GPS satellite reception.

In summary, the Ubiquiti Wave AP is a powerful and adaptable wireless access point designed to excel in demanding outdoor environments. With a sturdy hardware configuration, advanced software and network management features, and a robust RF setup, it's an excellent choice for a wide range of applications. Trust in Ubiquiti's quality and technology to ensure dependable and high-performance wireless connectivity.
