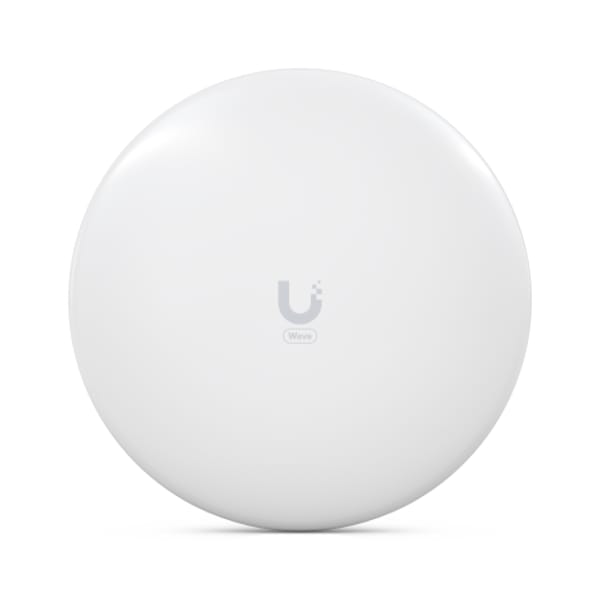

Ubiquiti UISP Wave-Nano Access Point

Introducing the Ubiquiti Wave-Nano, a high-performance wireless solution designed for demanding outdoor applications. With a robust set of features and advanced technology, this access point delivers reliable connectivity in challenging environments.

Hardware Features:
The Ubiquiti Wave-Nano is built to withstand harsh conditions. Its enclosure is constructed from durable aluminum alloy and UV-stabilized plastic, ensuring longevity and resistance to the elements. Designed for flexible mounting, it accommodates pole diameters from 25 to 63.5 mm (1 to 2.5 inches) and offers IPX6 weatherproofing to protect against water and dust.

Under the hood, the Ubiquiti Wave-Nano is powered by a dual-core ARM® Cortex®-A53 processor running at 1 GHz, supported by 512 MB of DDR3L memory. Its networking interface consists of a Gigabit Ethernet (GbE) RJ45 port for seamless connectivity.

The power setup is versatile, supporting both passive PoE 4-pairs (1, 2+; 3, 6-) and passive PoE 2-pairs (4, 5+; 7, 8-) for a voltage range of 44–54V DC. It comes with a 48V DC, 0.65A gigabit PoE adapter, which is included, and can also be powered by a UISP Router or UISP Switch. GPS functionality enhances location-based services, while a factory reset button and LED indicators for power, Ethernet, GPS, and link status provide essential information.

Operating temperature ranges from -40 to 60°C, and the Ubiquiti Wave-Nano can handle humidity levels from 5% to 95% without condensation. It is certified to meet FCC, IC, and CE standards, ensuring safety and regulatory compliance.

Software Features:
Operating as a PtMP (Point-to-MultiPoint) station, the Ubiquiti Wave-Nano offers advanced Ubiquiti-specific features like Wave AI and a discovery protocol. It provides an array of services, including UISP (Ubiquiti's Network Management System), a ping watchdog, NTP client, and SNMP for efficient network management. Tools like antenna alignment, discovery utility, ping, trace route, and speed test simplify network configuration and troubleshooting.

In network bridge/router mode, the Ubiquiti Wave-Nano seamlessly integrates into your existing network infrastructure. It operates with UISP versions 1.4.5 and later, offering a hassle-free experience.

System Features:
The Ubiquiti Wave-Nano delivers a total throughput of 2 Gbps (1 Gbps in each direction), ensuring high-speed data transmission. It supports a maximum range of over 5 km, making it suitable for a variety of outdoor applications.

For enhanced security, the access point uses WPA2-PSK (AES) encryption to protect your network.

RF Features:
Operating in the 57–71 GHz frequency range (regulatory region-dependent), the Ubiquiti Wave-Nano offers channel bandwidths of 2160 and 1080 MHz. It supports modulation schemes such as 16QAM and QPSK for efficient data transmission. With an impressive antenna gain of 41 dBi and vertically linear polarization, it ensures a robust signal. The beamwidth is narrow, with azimuth and elevation beams of 1.4°.

Back-Up RF Features:
In addition to its primary RF features, the Ubiquiti Wave-Nano supports 802.11ax (WiFi 6) in the 5 GHz band. It operates in various frequency ranges, depending on the regulatory region, and offers channel bandwidths of 20, 40, and 80 MHz. Modulation schemes range from BPSK to 1024QAM, ensuring data is transmitted efficiently. With a 19 dBi antenna gain and dual-linear polarization, it offers reliable connectivity. The beamwidth is wider, with azimuth and elevation beams of 14°.

LED Features:
LED indicators on the Ubiquiti Wave-Nano provide valuable status information. The power LED displays different colors to indicate various states of operation, while the Ethernet LED flashes when Ethernet traffic is detected. The GPS LED signals GPS satellite reception, and the link LEDs indicate 5 GHz and 60 GHz link status.

In summary, the Ubiquiti Wave-Nano is a rugged and powerful wireless access point designed for outdoor environments. With its robust hardware, advanced software features, and impressive RF capabilities, it's an excellent choice for various outdoor applications that demand high-performance and reliable connectivity. Trust in Ubiquiti's quality and technology to ensure dependable outdoor wireless solutions.
